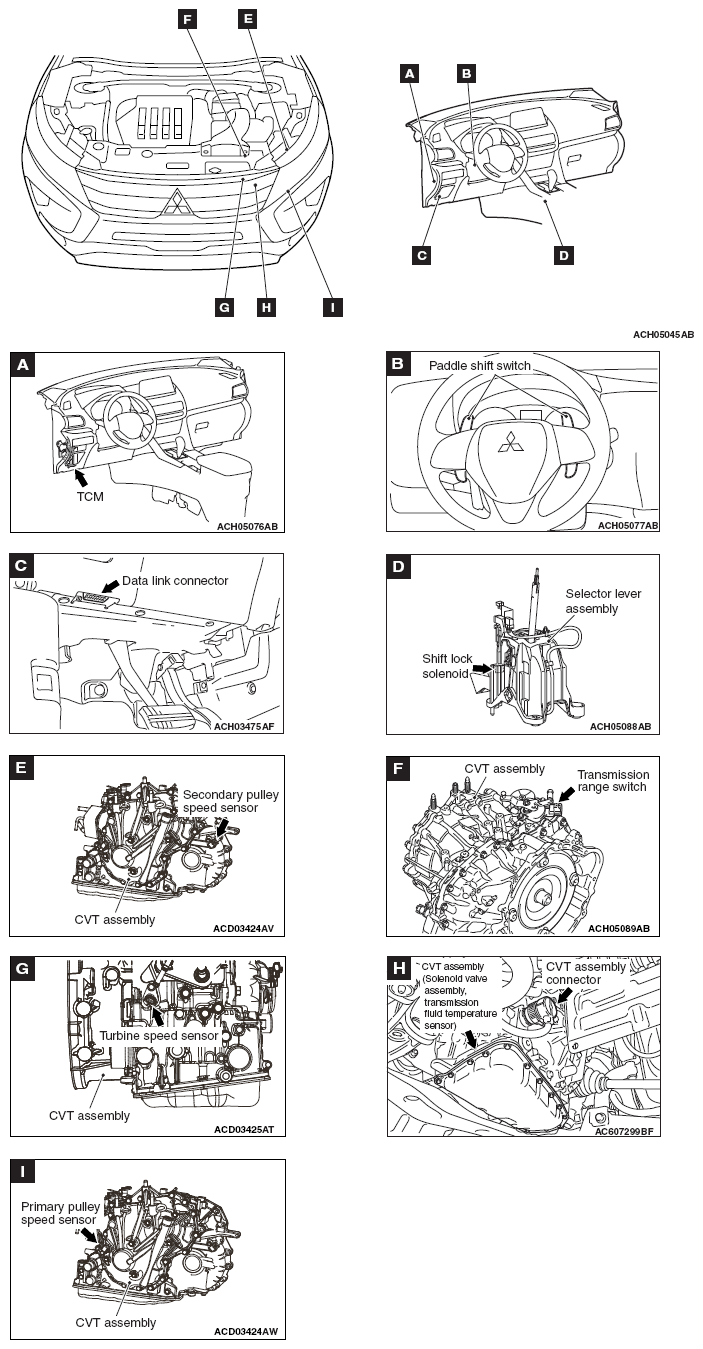

Control System Component Part Configuration Diagram

Name	Symbol	Name	Symbol
CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor)	H	Primary pulley speed sensor	I
TCM	A	Secondary pulley speed sensor	E
Data link connector	C	Shift lock solenoid	D
Transmission range switch	F	Turbine speed sensor	G
Paddle shift switch	B	-	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
