S-AWC Drive Mode-Selector Inspection

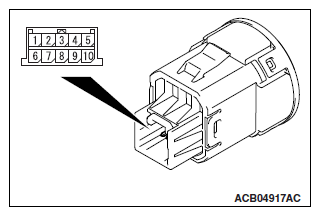

G12147307Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Terminal number Switch status Normal conditions
2 - 6 ON (switch pushed) Continuity exists (2 Ω or less).
OFF (switch released) No continuity
