Removal And Installation
Pre-removal operation
Air Cleaner Assembly Removal
(Refer to
AIR CLEANER
).
Battery and Battery Tray Removal (Refer to
BATTERY
).
Post-installation operation
Battery and Battery Tray Installation (Refer to
BATTERY
).
Air Cleaner Assembly Installation
(Refer to
AIR CLEANER
).
Transmission Range Switch and Control Cable Adjustment (Refer to
TRANSMISSION RANGE SWITCH AND CONTROL CABLE ADJUSTMENT
).

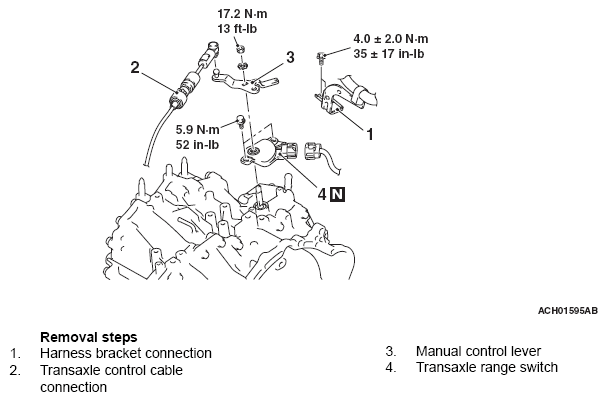

Fig 1: Removing/Installing Transmission Range Switch Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
