Special Tools

Tool Tool number and name Supersession Application
- MB992744
MB992745
MB992746
MB992747
MB992748
Scan tool (M.U.T.-IIISE)		 - DTC and Data list check
G09625236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

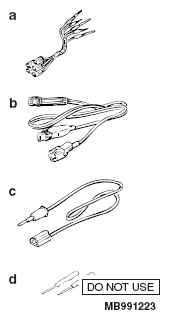

 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Continuity check and voltage measurement at harness wire or connector
  1. For checking connector pin contact pressure
  2. For checking power supply circuit
  3. For checking power supply circuit
  4. For connecting a locally sourced tester
G08294095Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006
Extra fine probe		 - Continuity check and voltage measurement at harness wire or connector
