<<A>> Cover Removal

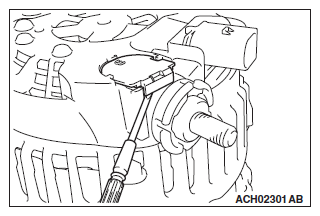

  1. Remove the cover using a screwdriver as shown in the illustration.
    G12147073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
