<<B>> Cover Removal

CAUTION: Be careful as it may cause damage if you insert the screwdriver deeply and forcefully.

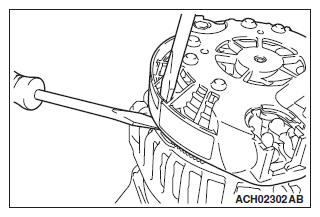

  1. Remove the cover using a screwdriver as shown in the illustration.
G12147074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
