>>B<< Oil Ring Installation

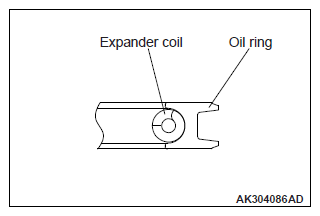

Install the expander coil and oil ring to the piston ring groove.

G12143931Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
