>>E<< Connecting Rod Bearing Installation

Connecting rod bearings are number coded with paint at the illustrated locations. Bearings should be selected based on the following table.

Crankshaft Identification mark	Connecting rod Identification mark	Connecting bearing Identification mark
0	1	Black or 1
0	2	None or 2
1	1	None or 2
1	2	Green or 3
2	1	Green or 3
2	2	Blue or 4

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

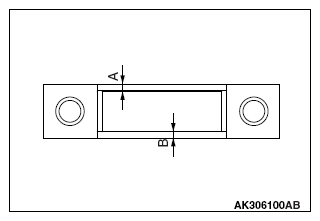

Measure the illustrated location. The error should be within 0.5 mm (0.02 inch).

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
