>>C<< Timing Chain Case Cover A Installation

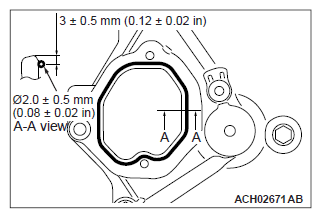

Apply liquid gasket of
2 ± 0.5 mm (0.08 ± 0.02 inch) of thickness in diameter to the timing chain case cover A or the timing chain case.
Specified sealant:
Three Bond 1217G or equivalent
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
