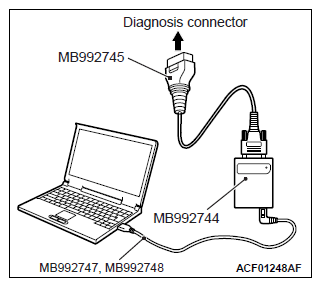

Scan Tool (Multi Use Tester (M.U.T.-IIISE) Sub Assembly): M.U.T.-IIISE

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

For the V.C.I.-Lite, use MB992745, MB992747 and MB992748.
- Refer to HOW TO CONNECT THE SCAN TOOL (M.U.T.-IIISE) for instructions on handling the scan tool (M.U.T.-IIISE).

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the scan tool (M.U.T.-IIISE).

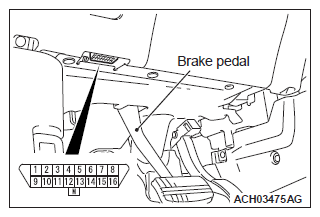

Connect the scan tool (M.U.T.-IIISE) to the data link connector as shown in the illustration.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Connect the M.U.T.-IIISE to the data link connector as shown in the illustration.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
