Engine And Transaxle

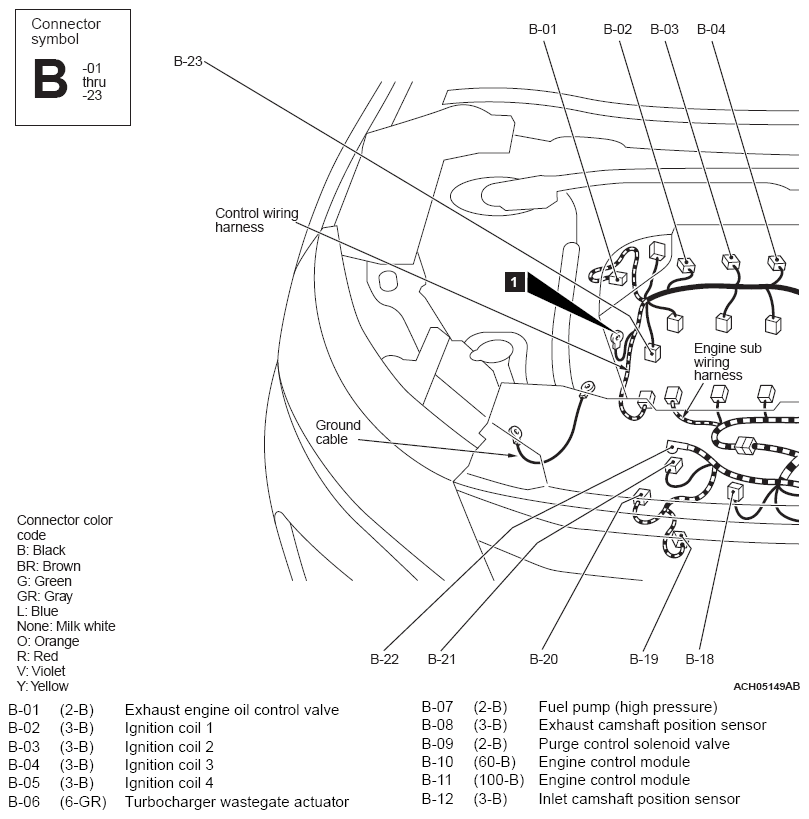

G12650950Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

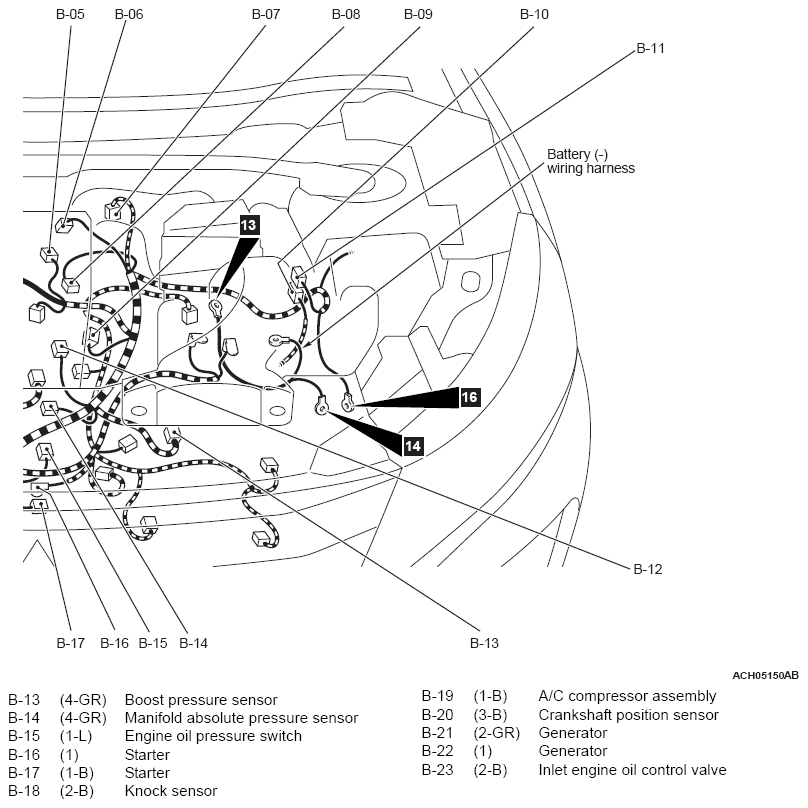

G12650951Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

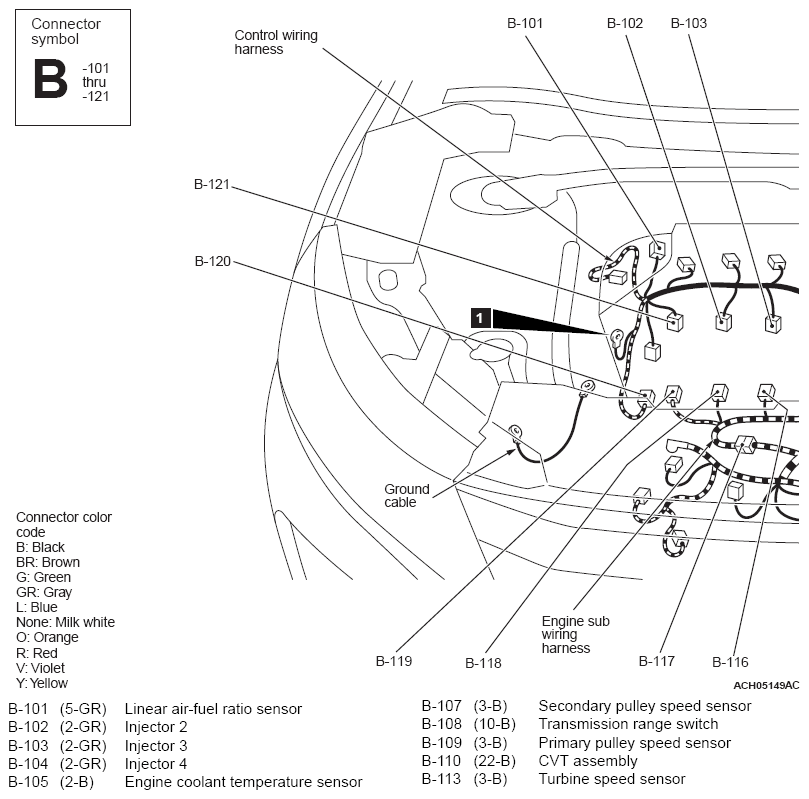

G12650952Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

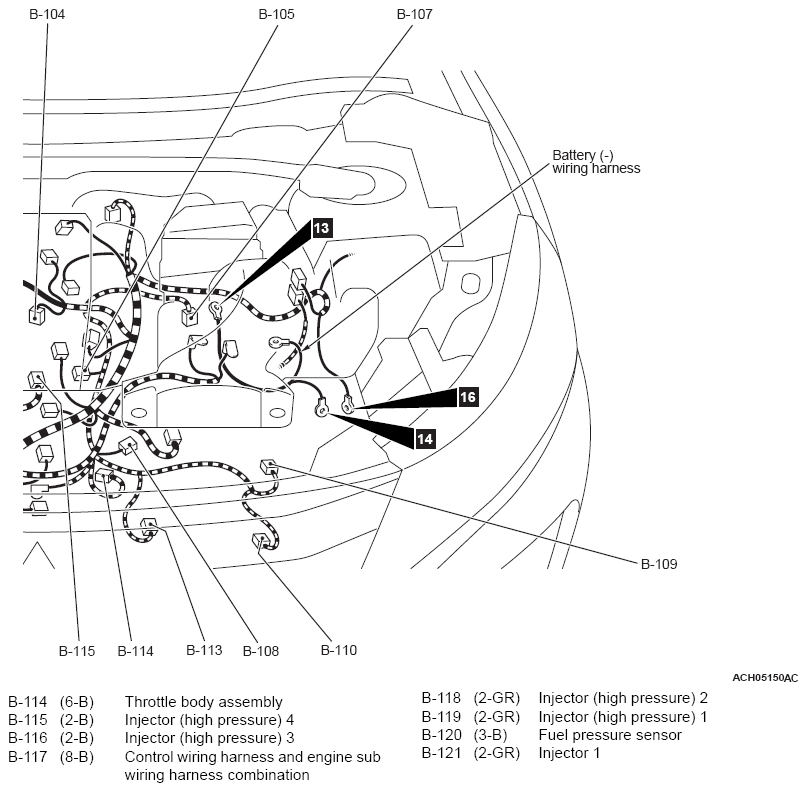

G12650953Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
