Generator Assembly: Inspection: Brush

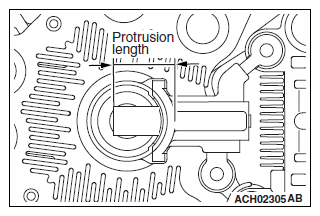

  1. Measure the length of the protrusion of the brush. Replace the brush holder assembly if the protrusion length is shorter than the limit.

    Limit: 10 mm (0.4 inch)

G12147079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
