Removal And Installation: Notes

Pre-removal operation

Engine Cover Removal
(Refer to ENGINE COVER ).
Charge air cooler Intake Air Hose A Removal
(Refer to CHARGE AIR COOLER ).
Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Throttle Body Removal
(Refer to THROTTLE BODY ASSEMBLY ).
Fuel Rail and Fuel Injector Assembly Removal
(Refer to INJECTOR ).

Post-installation operation

Fuel Rail and Fuel Injector Assembly Installation
(Refer to INJECTOR ).
Throttle Body Installation
(Refer to THROTTLE BODY ).
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Charge air cooler Intake Air Hose A Installation
(Refer to CHARGE AIR COOLER )
Engine Cover Installation
(Refer to ENGINE COVER ).

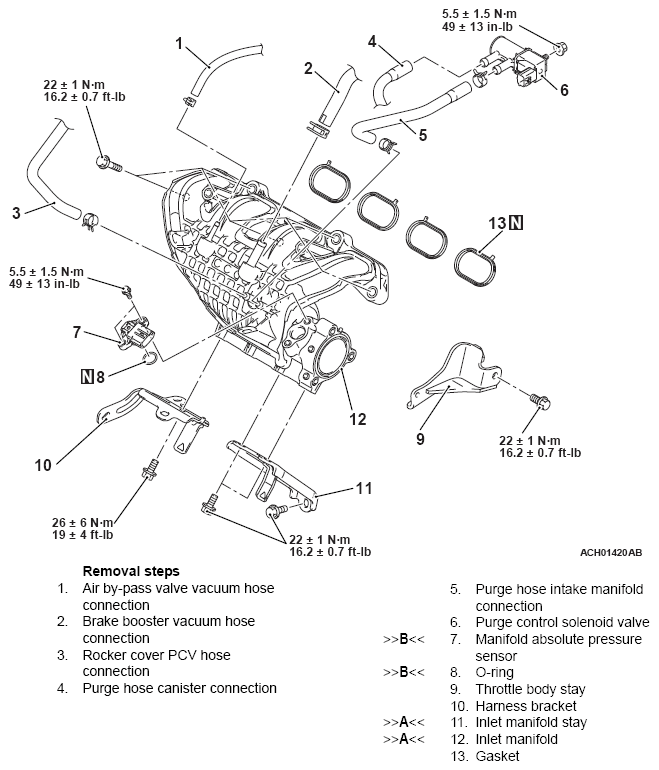

Fig 1: Removing/Installing Intake Manifold Components With Torque Specification

G12648461

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
