Charging System

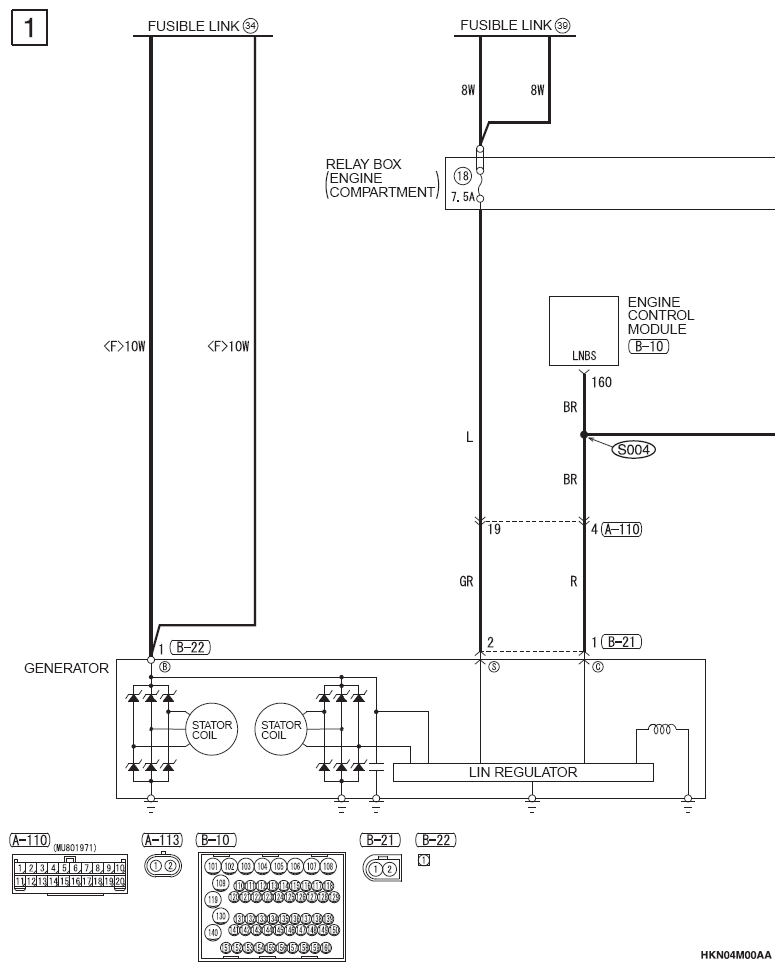

G12651390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G12651391Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

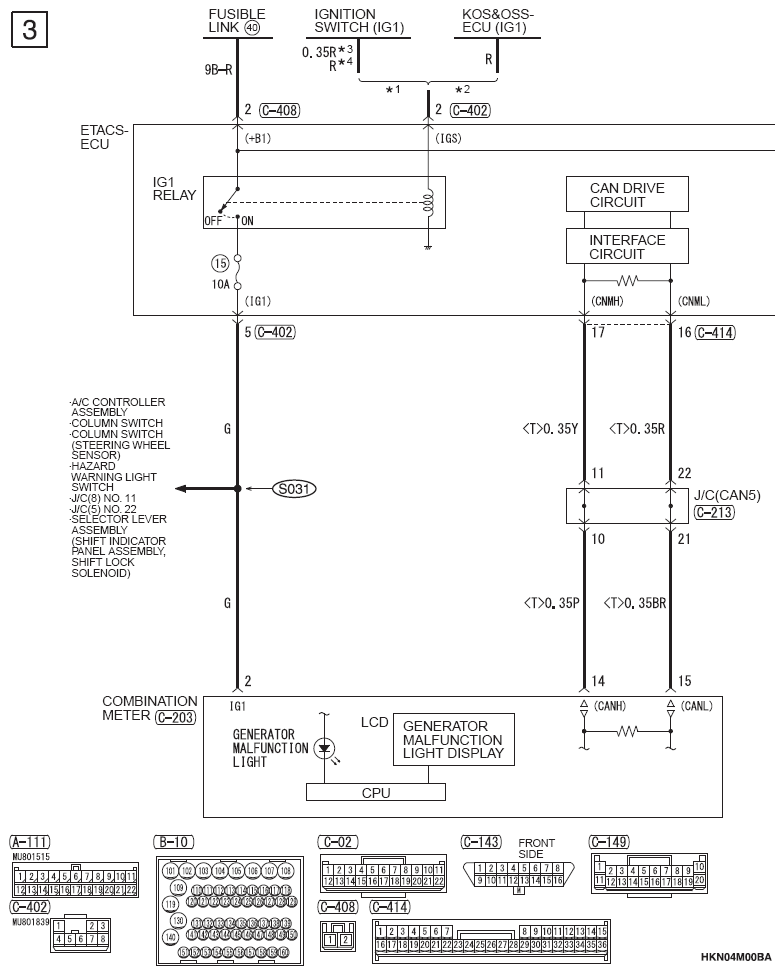

G12651392Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

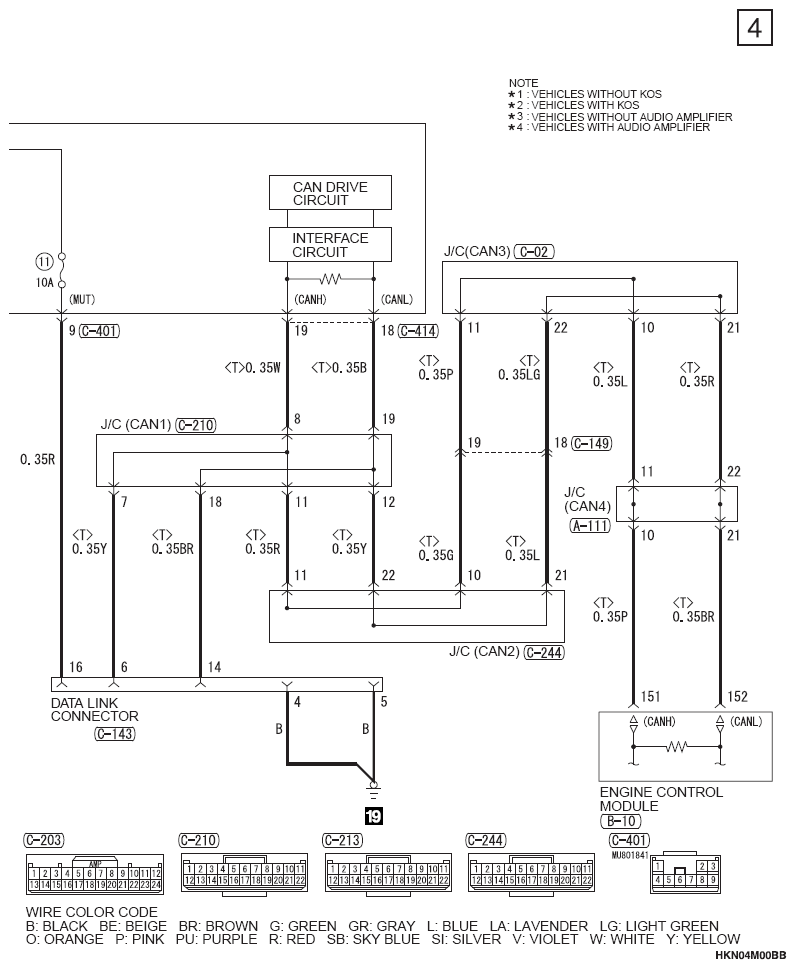

G12651393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
