Cooling System

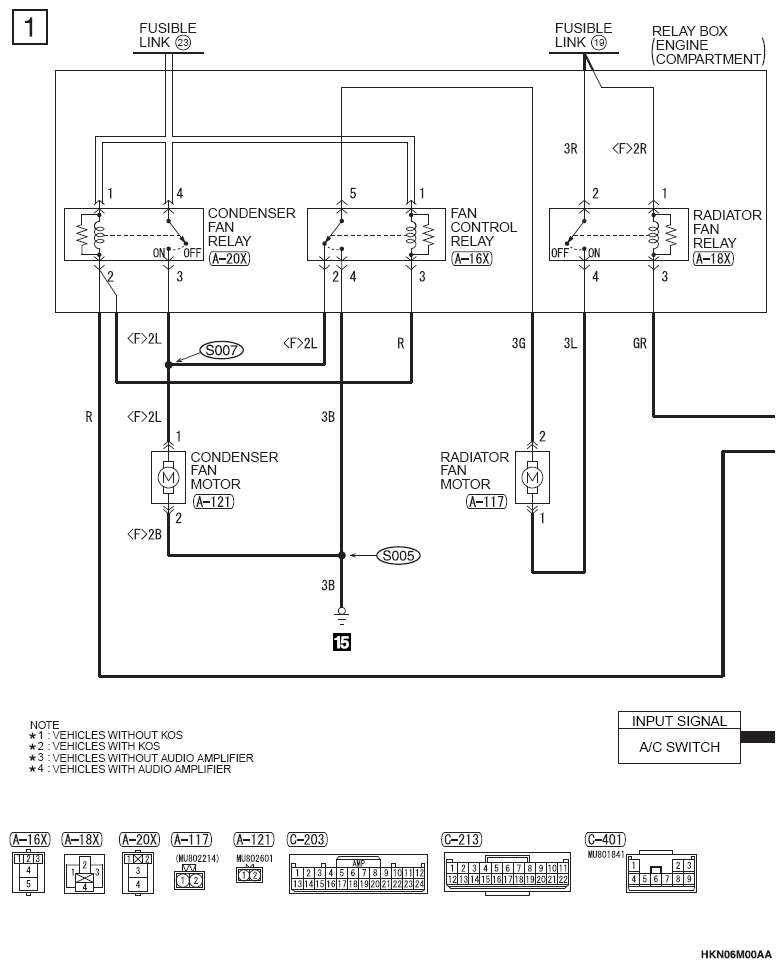

G12651408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

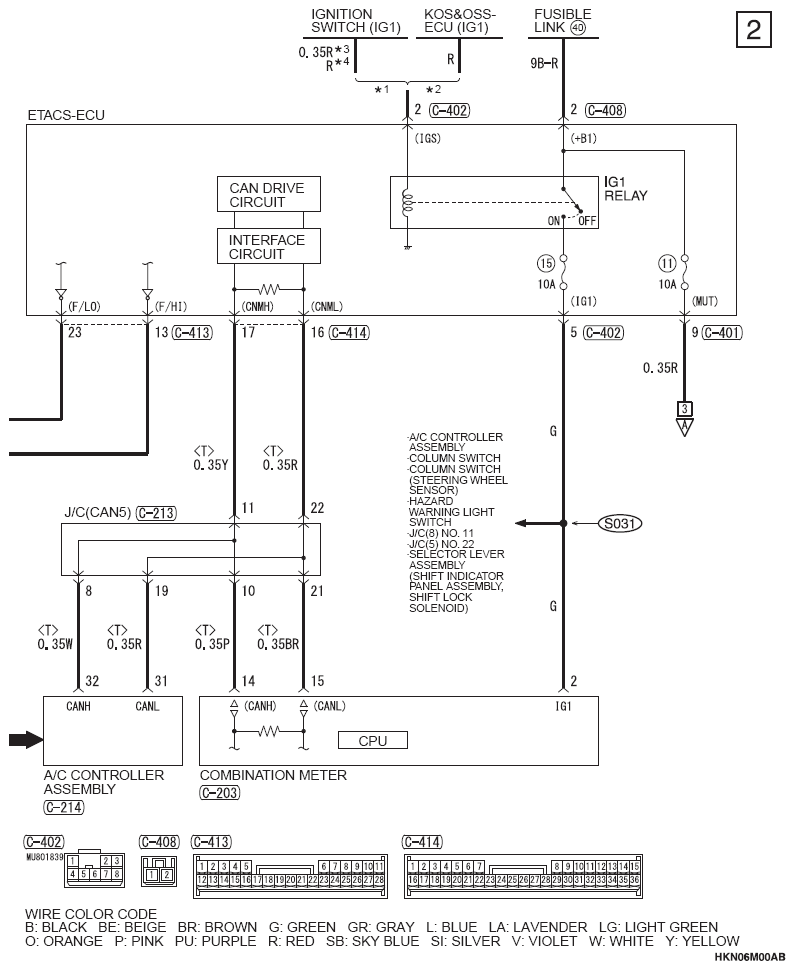

G12651409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

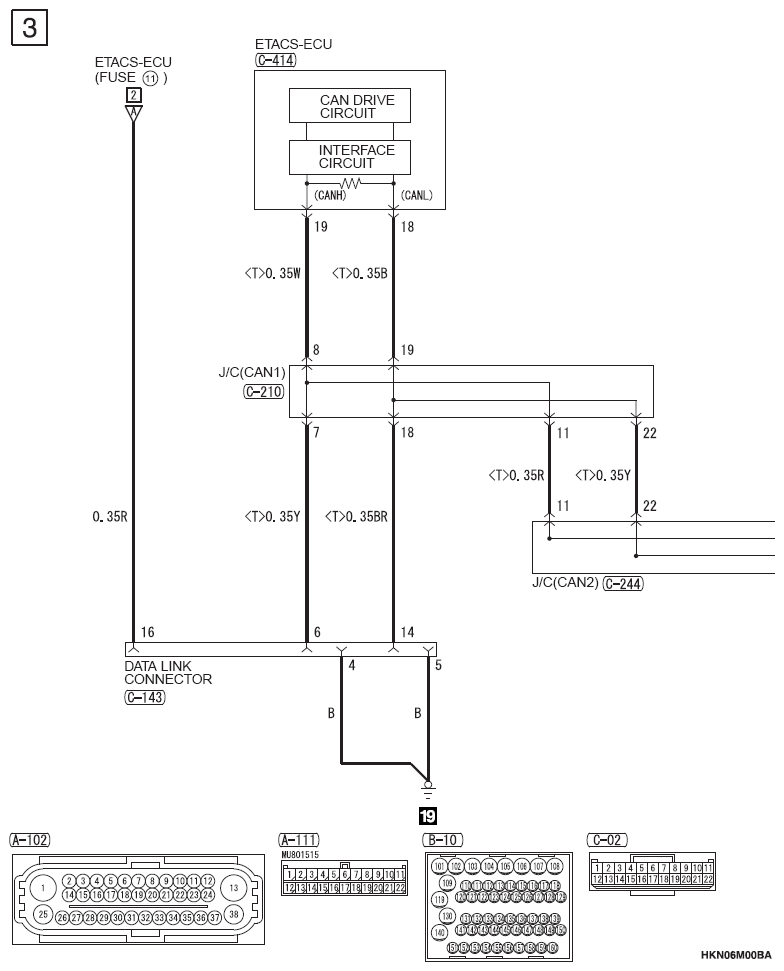

G12651410Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

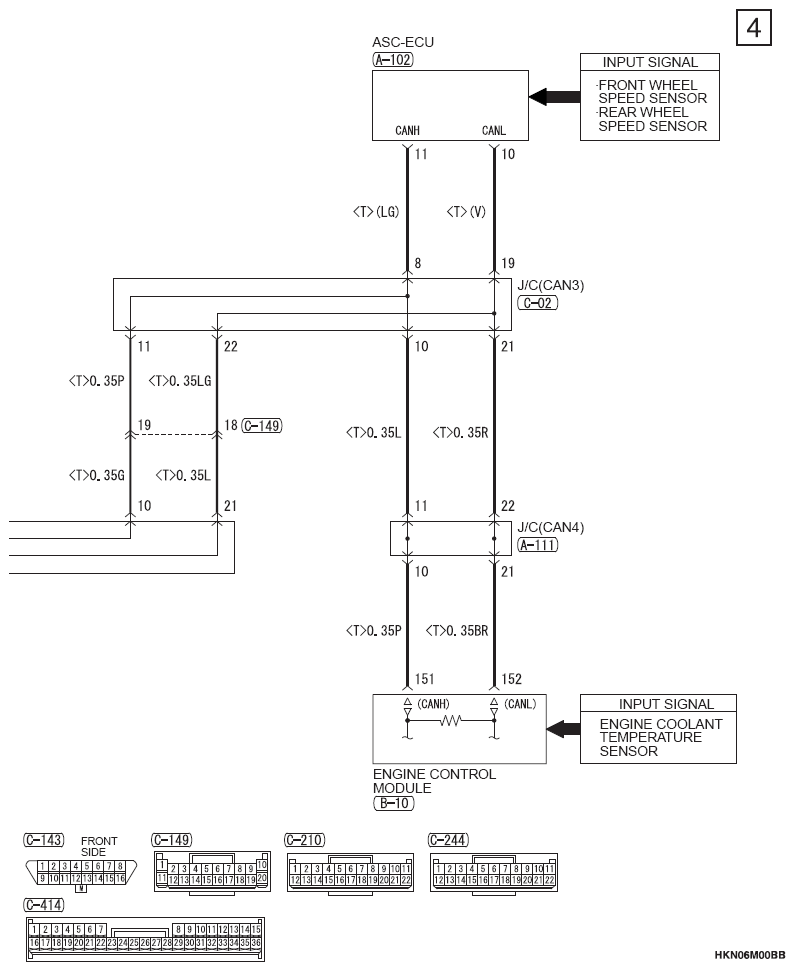

G12651411Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
