Circuit Diagrams: Stoplight

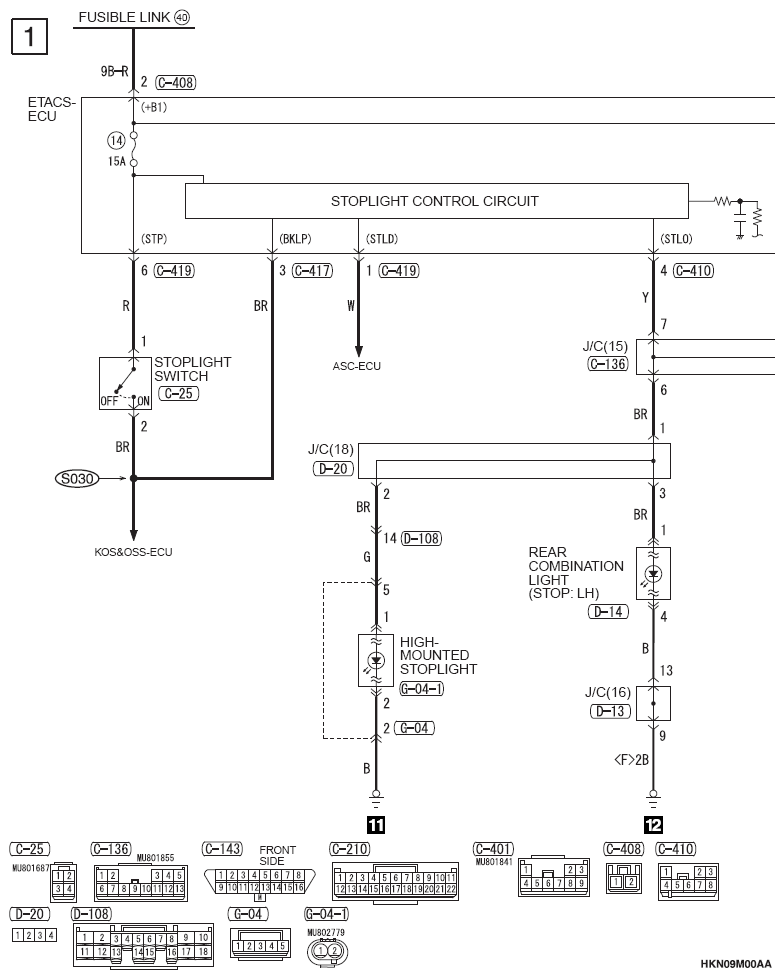

G12651467Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

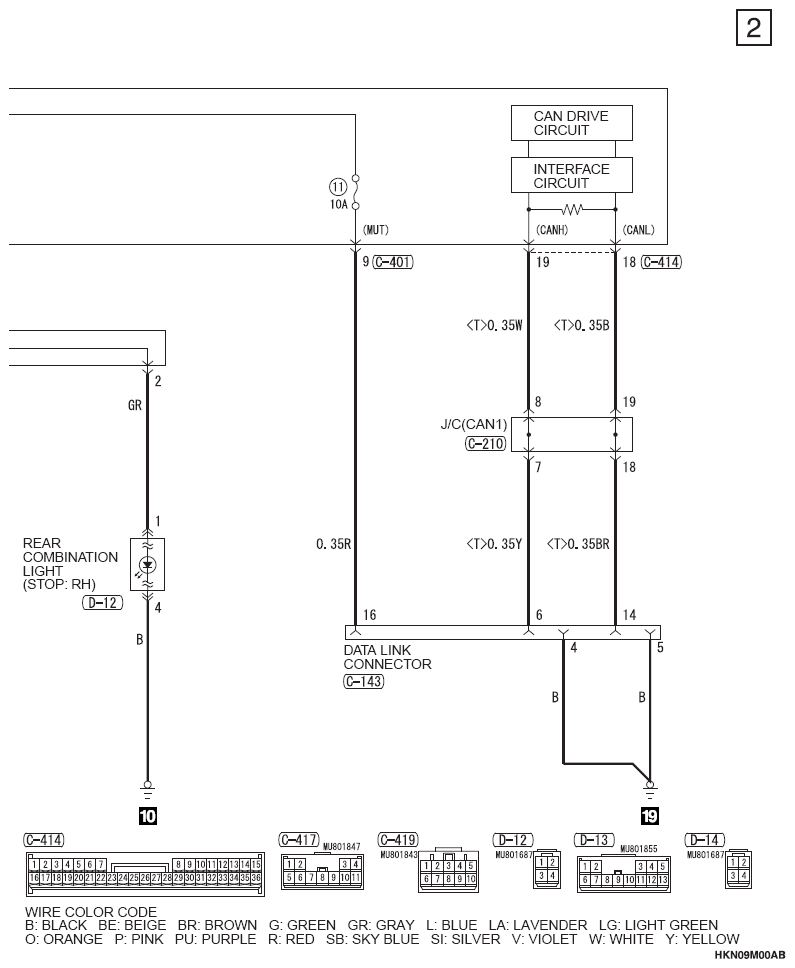

G12651468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
