Theft-Alarm System

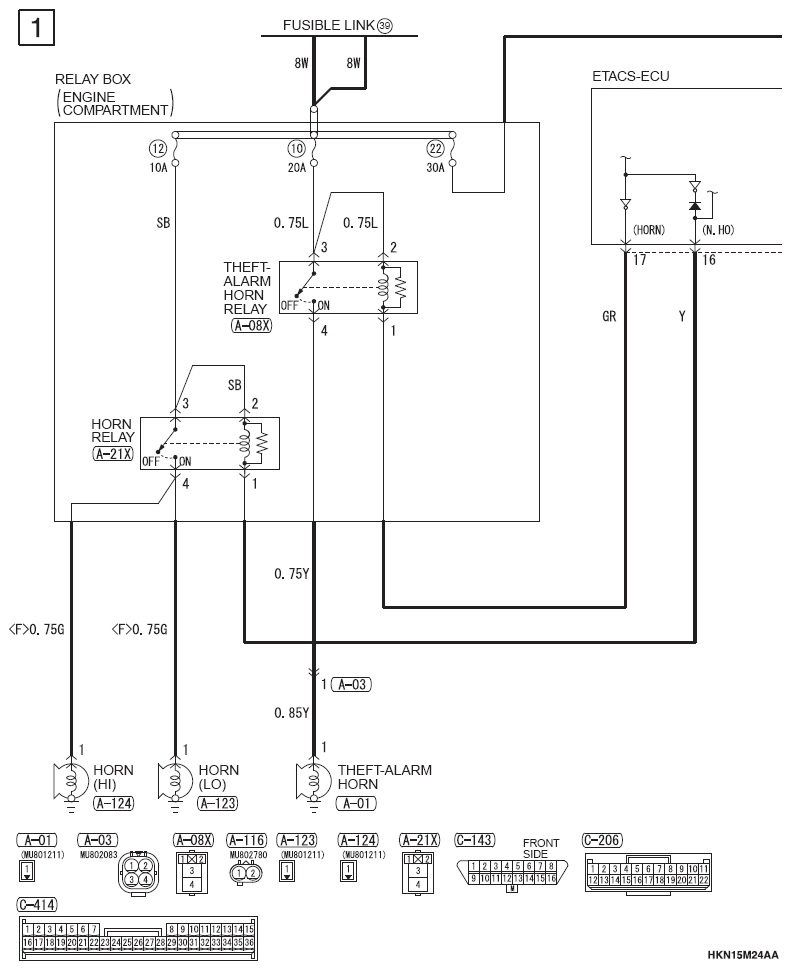

G12651713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

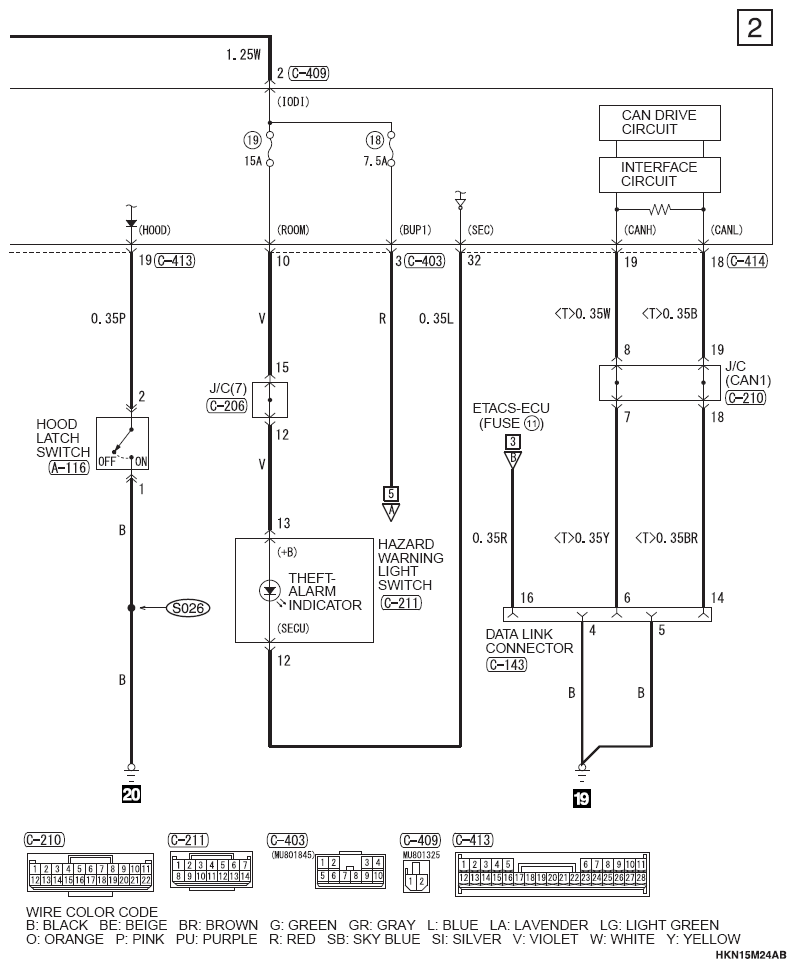

G12651714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

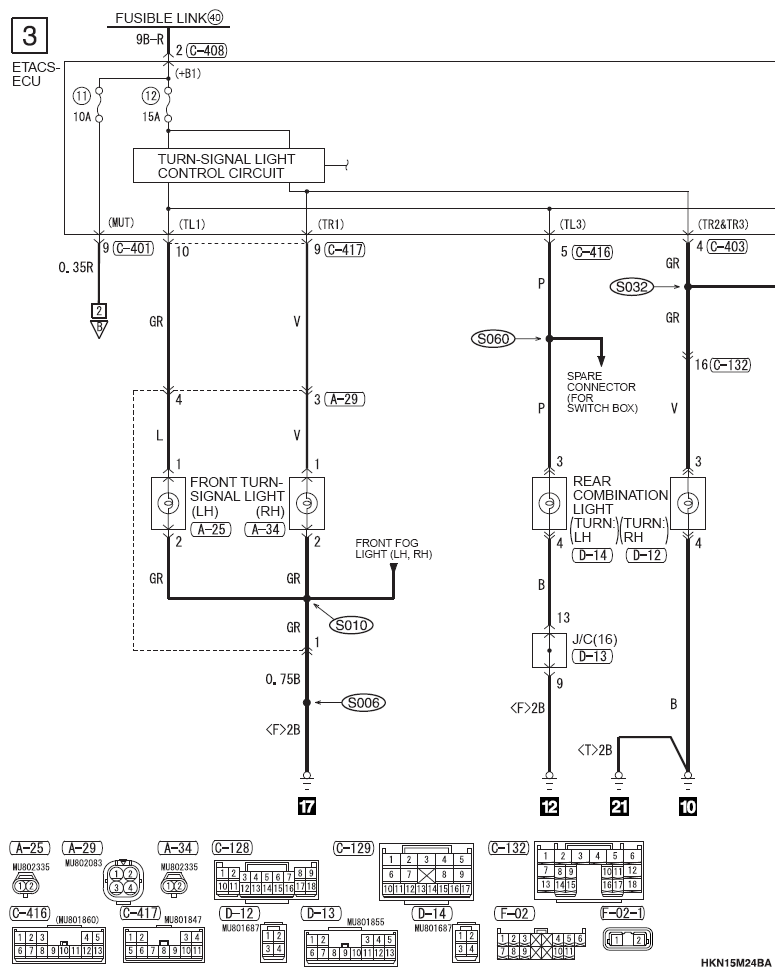

G12651715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

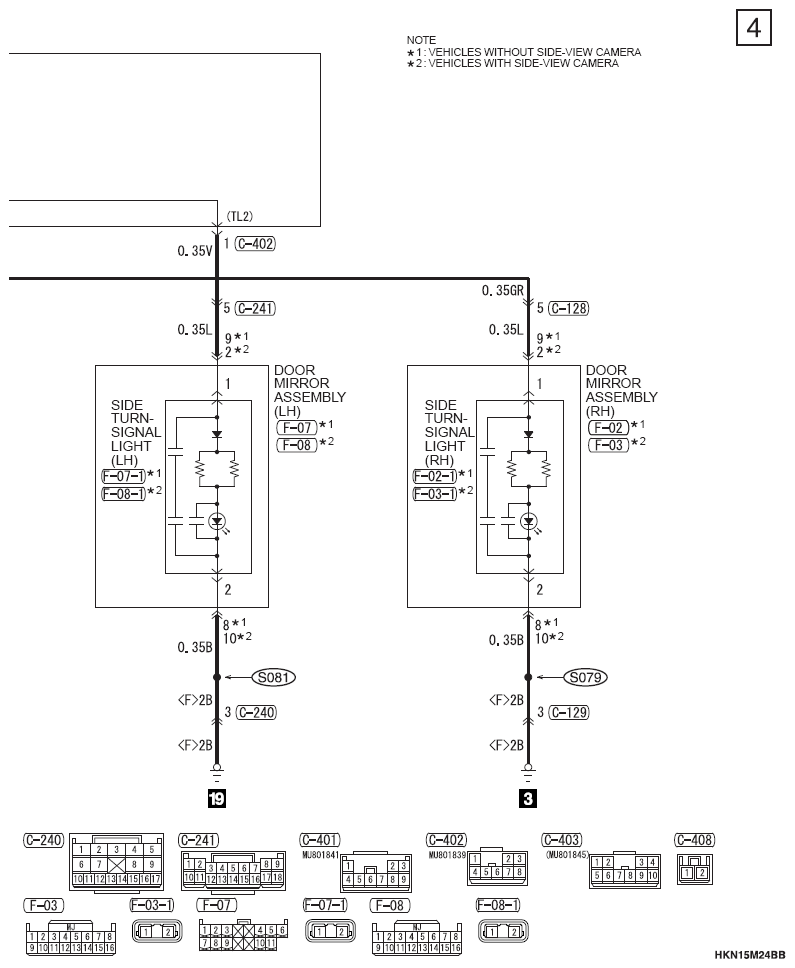

G12651716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

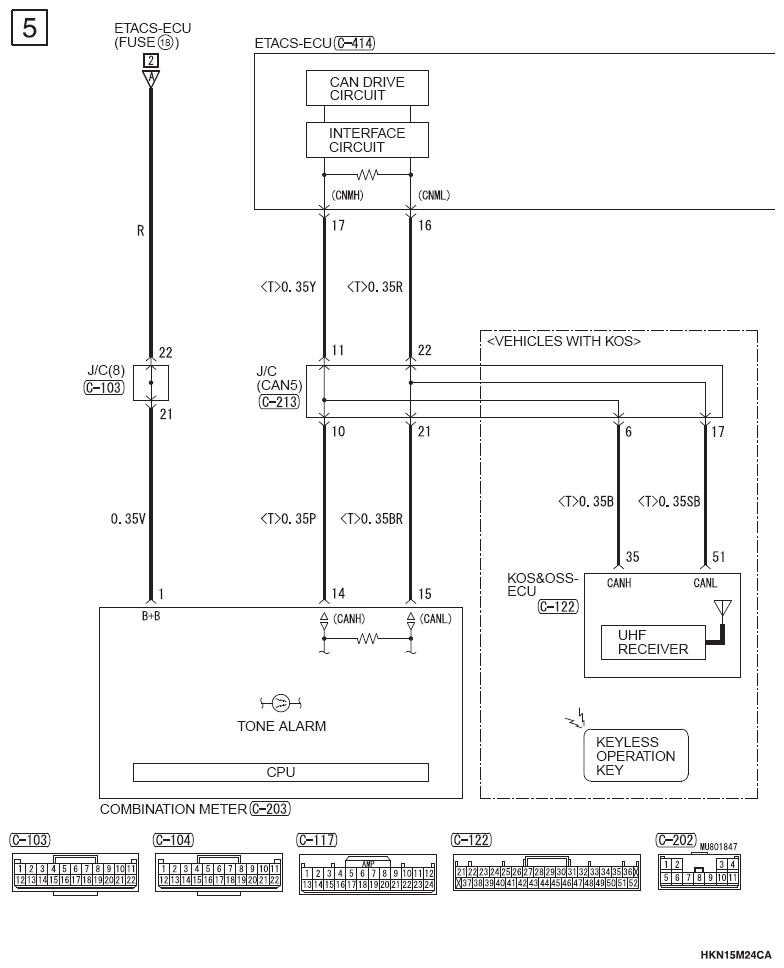

G12651717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

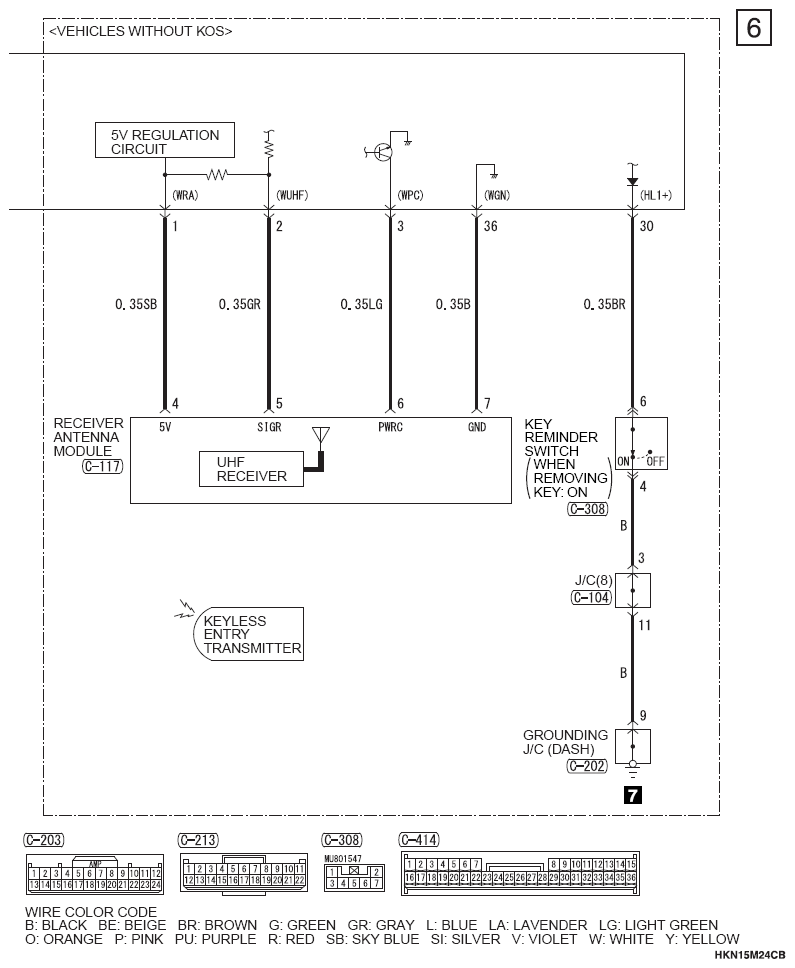

G12651718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

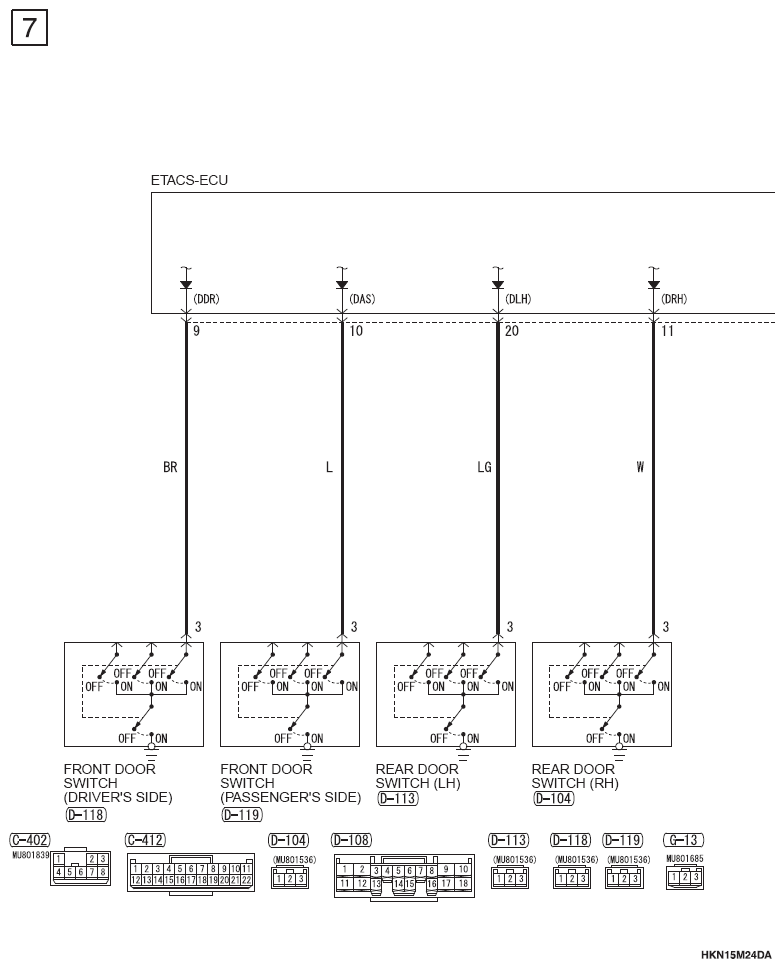

G12651719Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

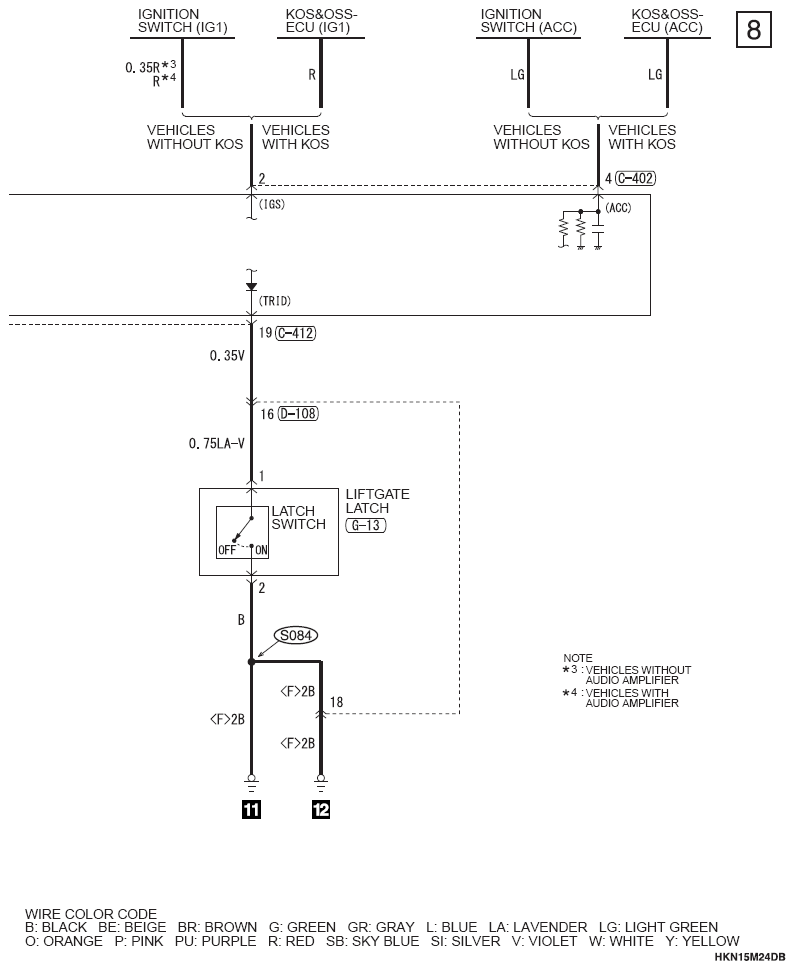

G12651720Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
