Removal And Installation

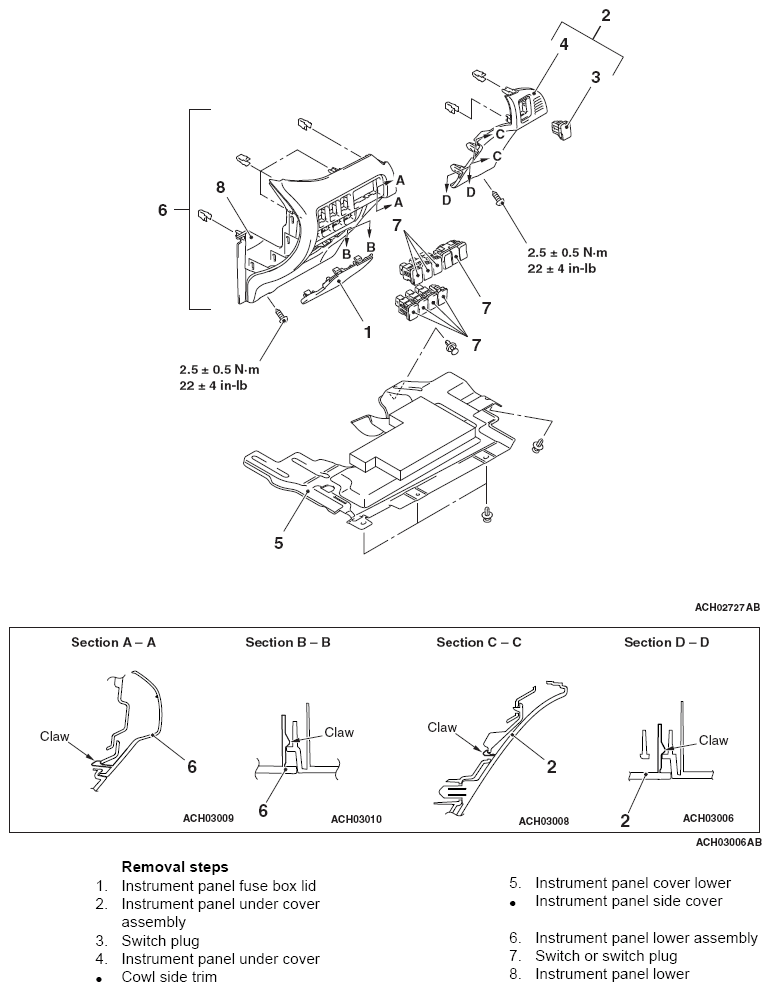

Fig 1: Removing/Installing Instrument Lower Panel Components With Torque Specification
G12649808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
