CVT Control Component Layout

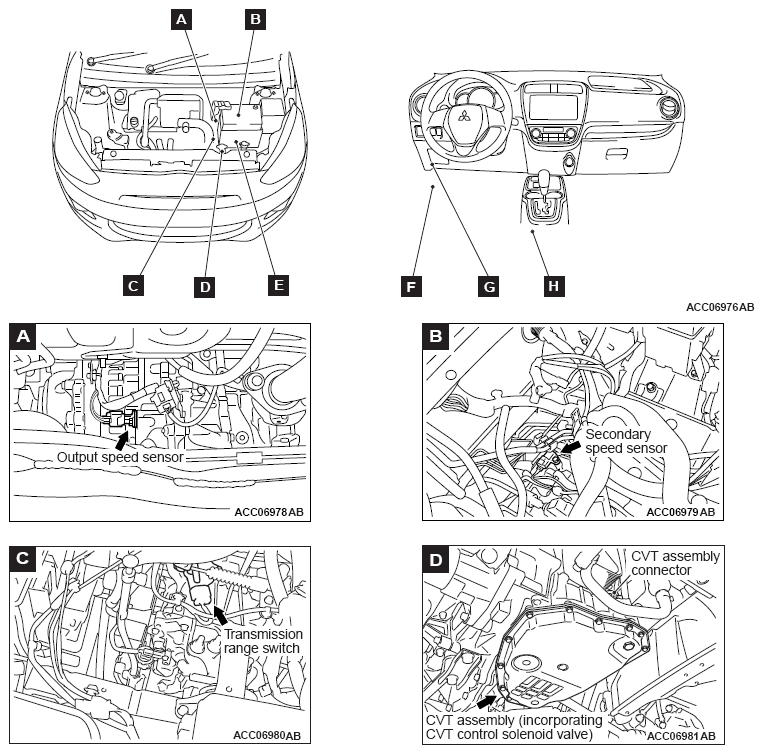

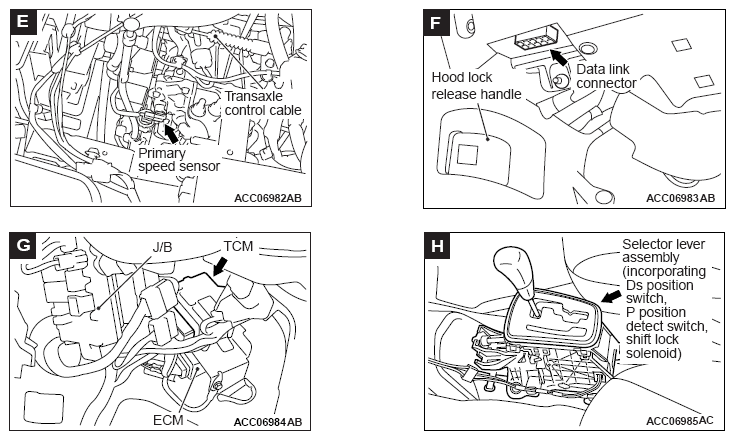

| Name | Symbol | Name | Symbol |
|---|---|---|---|
| CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor, high clutch oil pressure switch) | D | Primary pulley speed sensor | E |
| Data link connector | F | Secondary pulley speed sensor | B |
| Ds position switch | H | Shift lock solenoid | H |
| Output speed sensor | A | Transaxle control module (TCM) | G |
| P position detect switch | H | Transmission range switch | C |
