<<D>> Engine Assembly Supporting

  1. <When engine hanger special tool (MB991928) is used>
    1. Assemble the engine hanger special tool (MB991928) (Set the components below to the base hanger).
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
      • Joint x 2 (50) (MB991929)
      G11278310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

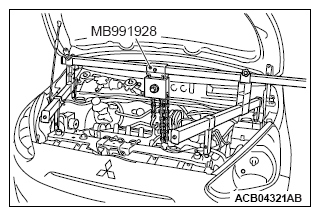

    2. Set the foot of the special tool MB991928 as shown in the illustration.
      NOTE: Adjust the engine hanger balance.
    3. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
    G11278091Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    G12681023Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. <When engine hanger special tool (MB991895) and engine hanger attachment special tool (MB992906) are used>

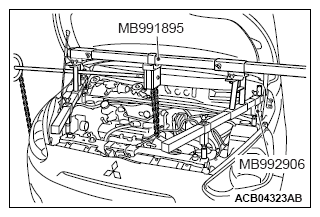

    1. Set the foot of the special tool MB991895 and special tool MB992906 as shown in the illustration.
      NOTE: Adjust the engine hanger balance.
    2. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
    G11278093Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    G12681025Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
