Removal And Installation: Notes

Pre-removal Operation Post-installation Operation

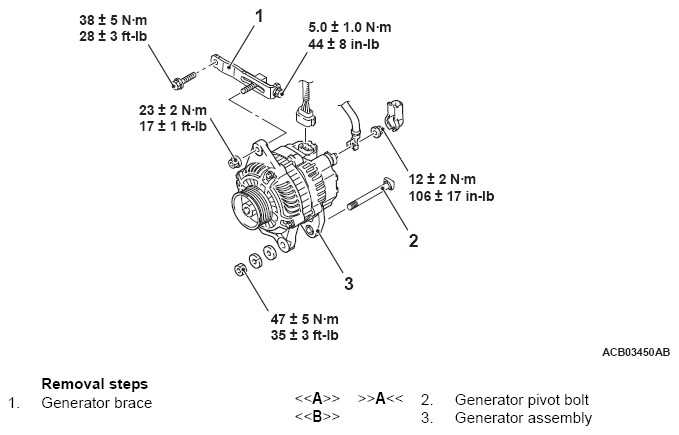

Fig 1: Removing/Installing Generator Assembly Components With Torque Specification
G12680696Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
