Column Switch Assembly

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to On-vehicle Service, STEERING WHEEL SENSOR CALIBRATION ).

Pre-removal Operation

Steering wheel assembly removal (Refer to STEERING WHEEL ).
Steering column lower cover and steering column upper cover removal (Refer to STEERING SHAFT ).
Paddle shift assembly removal (Refer to STEERING COLUMN SHAFT ASSEMBLY ). <Vehicles with Paddle Shift>

Post-installation Operation

Paddle shift assembly installation (Refer to STEERING COLUMN SHAFT ASSEMBLY ). <Vehicles with Paddle Shift>
Steering column lower cover and steering column upper cover installation (Refer to STEERING SHAFT ).
Steering wheel assembly installation (Refer to STEERING WHEEL ).

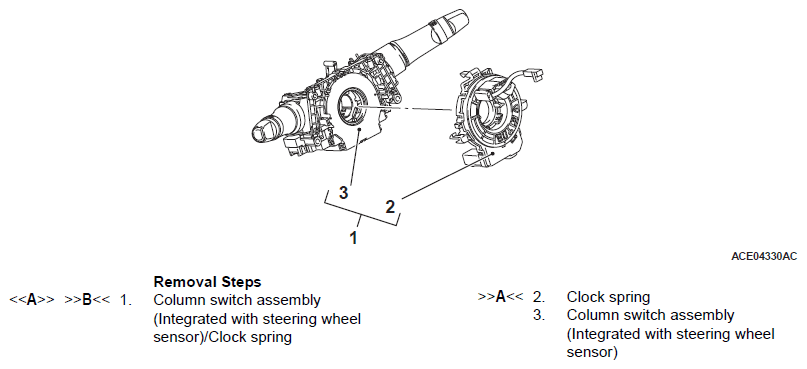

G12375669
