DISASSEMBLY AND REASSEMBLY <3.0 L Engine>: Notes

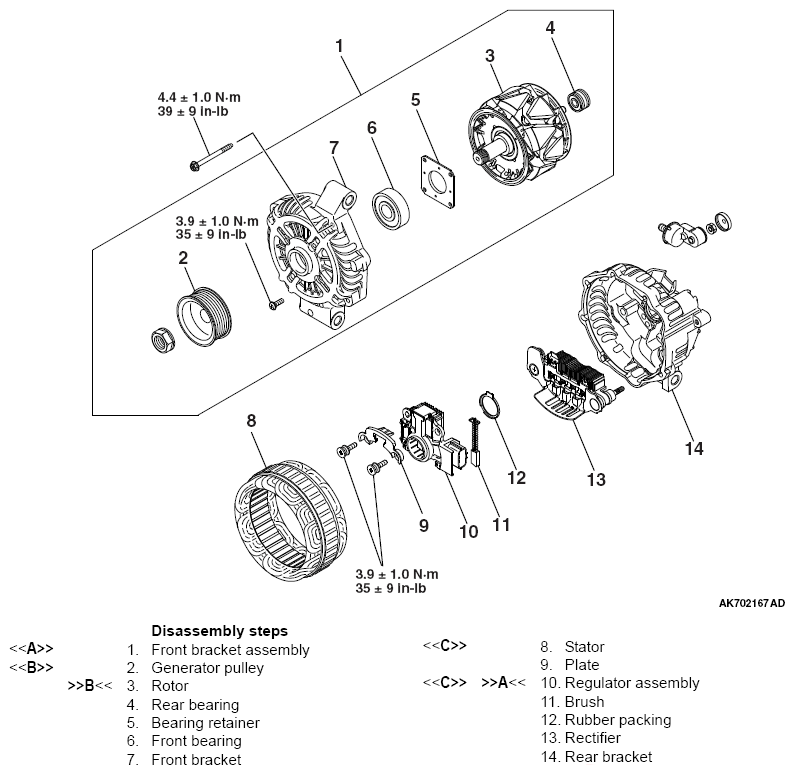

Fig 1: Disassembling/Reassembling Generator Assembly Components Location With Torque Specification (3.0 L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
