Component Locations: Grounding

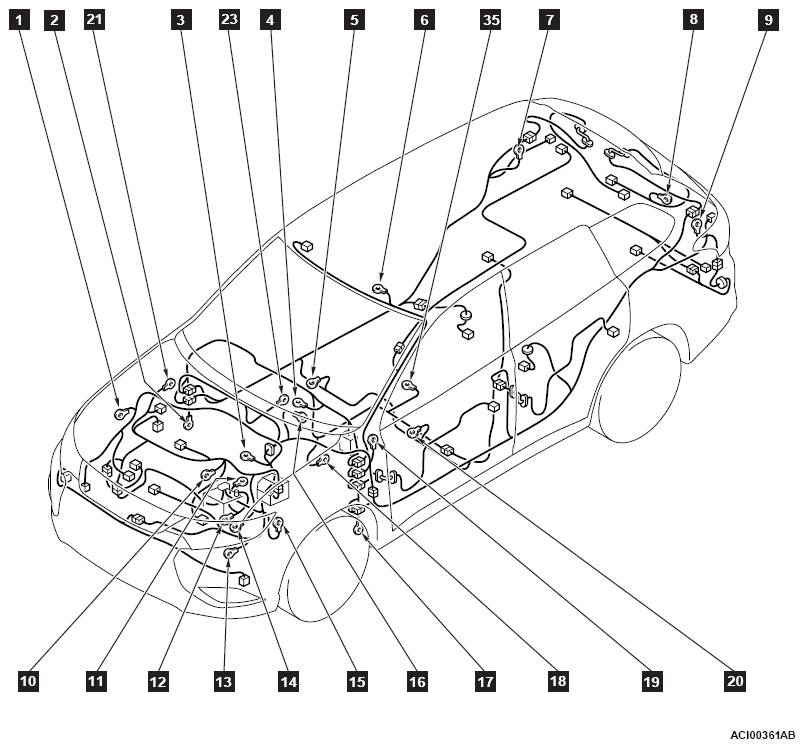

G13091458

NOTE: 1 to 35 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

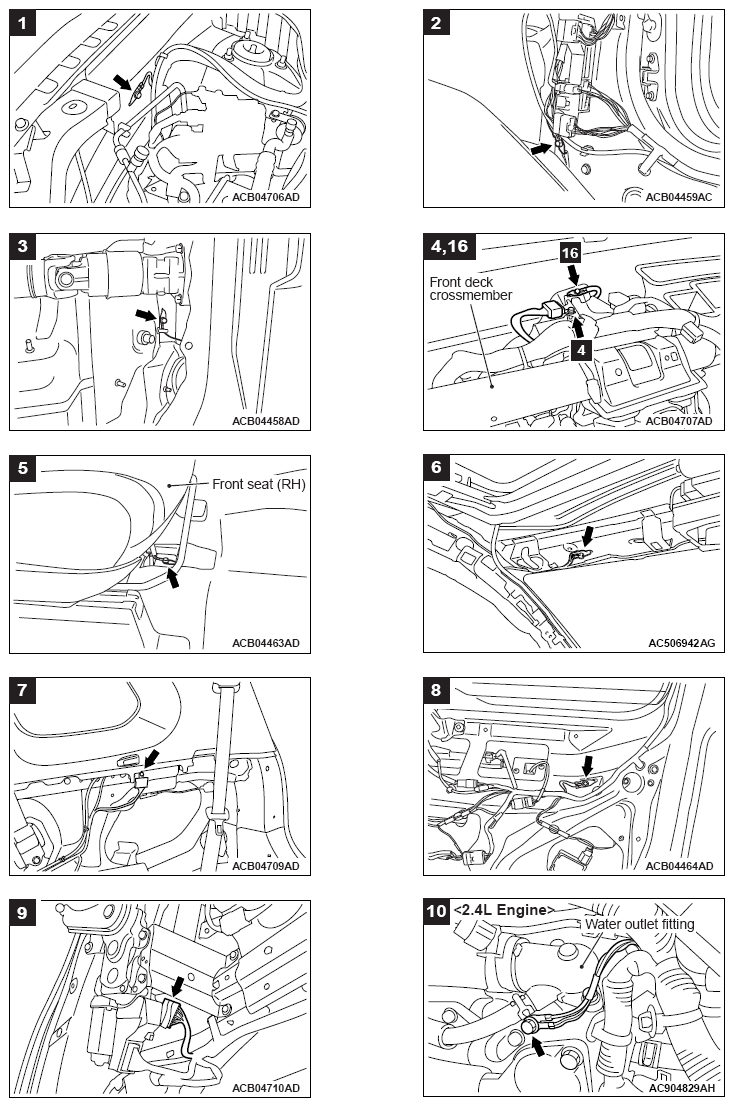

G13091459

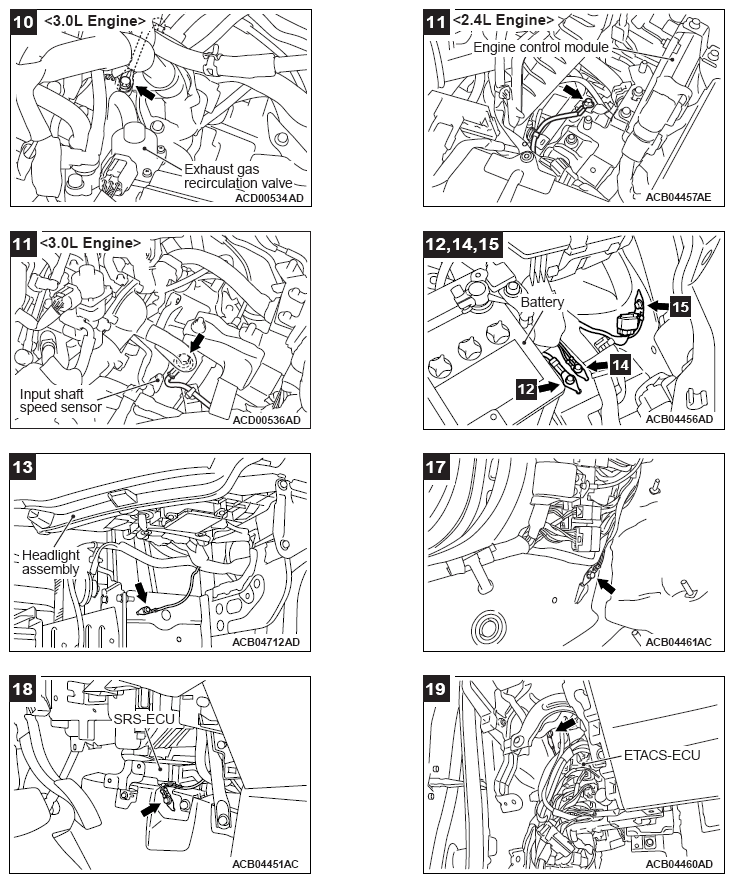

G13091460

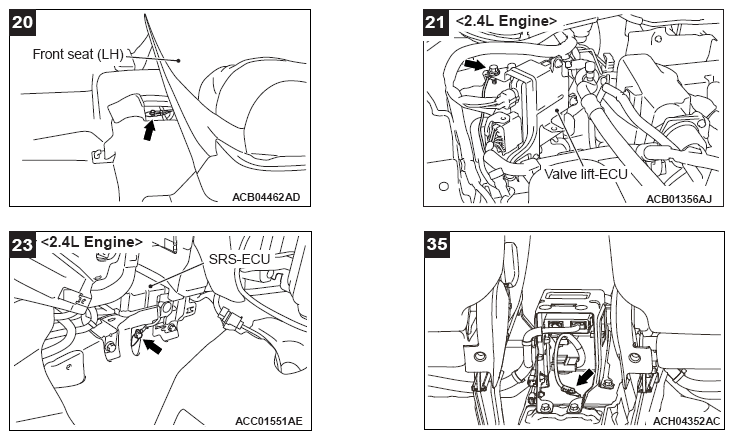

G13091461
