Steering Wheel Voice Control Switch Check: Notes
WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| Switch position |
Tester connection |
Measurement Value |

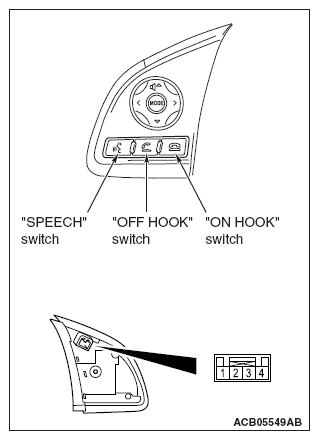

| "SPEECH" switch pushed <Vehicles with 1CD audio or display audio (CD player equipped)> |
1 - 2 |
Approximately 4.6 kΩ |
| "OFF HOOK" switch pushed |
Approximately 6.3 kΩ |
| "ON HOOK" switch pushed |
Approximately 8.6 kΩ |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
