Box, MOPAR Connect TELEMATIC - LHD
WARNING: This page is about a different car, the 2020 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Before installation, make a note of the data on the label (1) on the control module. This data will be needed for the test procedure at the end of the installation.
- Apply a strip of bi-adhesive Velcro (1) to the back of the T-Box module.
- Apply the Coroplast covering tape (1) to the parts of the T-Box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.
- From the front of the floor console and using a trim stick, disengage the retaining tabs (2) for the front gap hider and remove the gap hider (4).

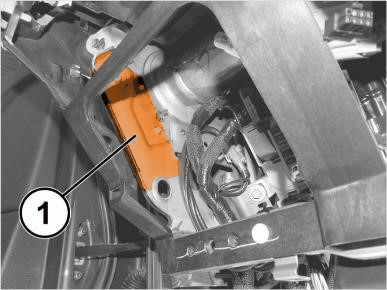

- Using isopropyl alcohol or heptane, clean the contact surface of the bracket (1) on which the T-box will be fitted.

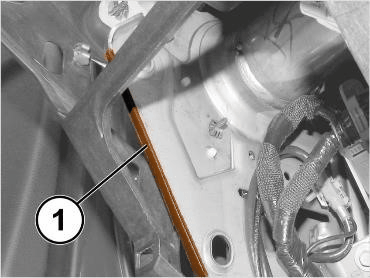

- Apply a strip of Coroplast tape approximately 10 cm (4 in.) long to the clean surface (1). Cover the sharp edge of the bracket to protect the T-box.

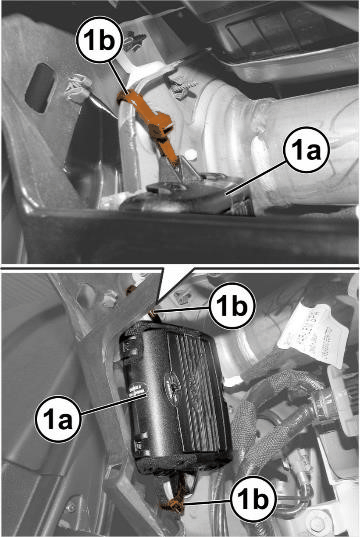

- Position the T-box (1a) on the bracket with the connector socket facing towards the front of the vehicle. Secure it with double-sided adhesive tape and two cable ties (1b).
- Connect the wire harness connector (1) to the T-box.
- Install the steering column opening. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- On completion of installation of the T-Box module, connect the scan tool to the EOBD socket, locate the BCM module and check for errors.
