Module, Adaptive Cruise Control (Acc): Installation

WARNING: This page is about a different car, the 2020 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.

Position the ACC module with bracket to the vehicle.

Courtesy of CHRYSLER GROUP, LLC

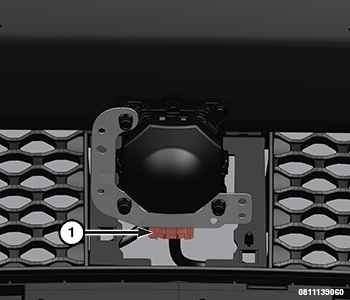

Connect the wiring harness connector (1) to the ACC module.

Courtesy of CHRYSLER GROUP, LLC

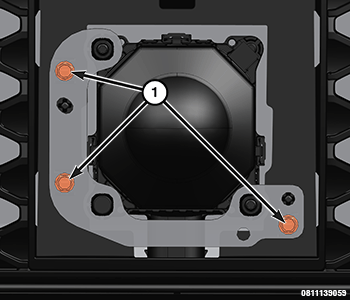

Install and securely tighten the ACC module bracket to grille fasteners (1).

Courtesy of CHRYSLER GROUP, LLC

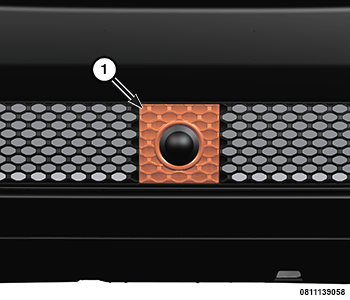

Install the ACC module fascia grill cover (1).
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
Perform the calibration of the ACC module. Refer to MODULE, ADAPTIVE CRUISE CONTROL (ACC), MODULE PROGRAMMING .
