Module, Emergency Assistance (EAM): Installation: Speaker
WARNING: This page is about a different car, the 2020 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

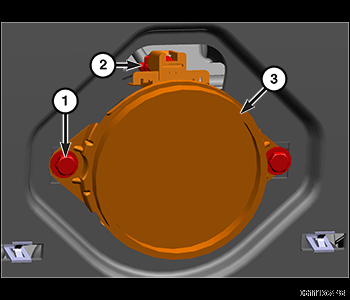

- Position the Emergency Assistance Module (EAM) Speaker (3) in the dash to connect the instrument panel wire harness connector (2).
- Install the EAM speaker and tighten the fasteners securely.

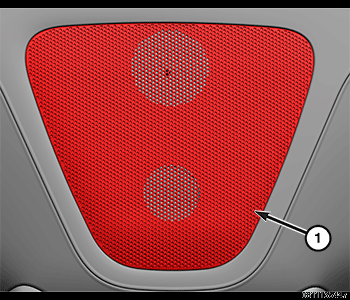

- Install the center dash speaker grill (1) making sure the lock tabs are fully engaged with the locking clips.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
