Module, HVAC: Installation
WARNING: This page is about a different car, the 2020 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

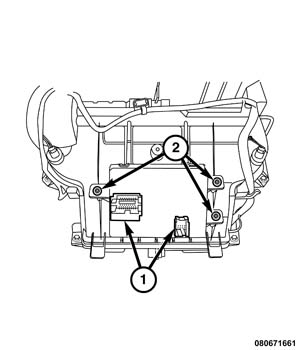

- Position the Heating, Ventilation, and Air Conditioning (HVAC) module to the HVAC housing.
- Install the fasteners (2) that secure the HVAC module to the HVAC housing. Tighten the fasteners to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
- Connect the wire harness connectors (1) to the HVAC module.
- Install the Integrated Center Stack (ICS). Refer to MODULE, INTEGRATED CENTER STACK (ICSM), INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Initiate the Actuator Calibration Test using a scan tool. Refer to MODULE, HVAC, MODULE PROGRAMMING .NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
