Module, Power Liftgate Control (PLGM): Removal

WARNING: This page is about a different car, the 2020 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the left rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .

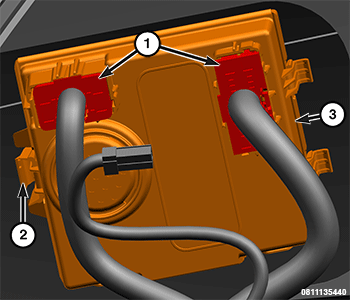

    GC0187049Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connectors (1) from the Power Liftgate Module (PLGM) connector receptacles.
  4. Press the latch feature (2) of the PLGM housing and pull the PLGM (3) out and away from the body panel.
  5. Remove the PLGM (3) from the vehicle.
