Module, Powertrain Control (Pcm): Removal: 2.4L/3.2L

WARNING: This page is about a different car, the 2020 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not disconnect the Powertrain Control Module (PCM) electrical connectors before the ignition key is in the off position and the battery cable disconnected. If these steps are not performed damage to the PCM may result from a voltage spike.

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

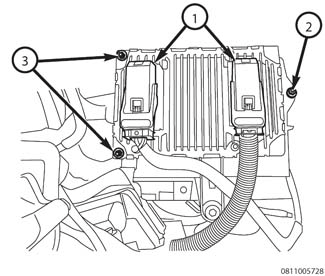

Disconnect the PCM wire harness connectors (1).
Remove the fasteners (2, 3) that secure the PCM to the PCM mount and remove the ground wire, if necessary, from the stud.

Courtesy of CHRYSLER GROUP, LLC

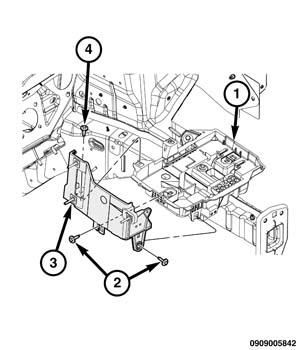

If required, remove the PCM mount (3).
