>>C<< Front Bracket Assembly Installation

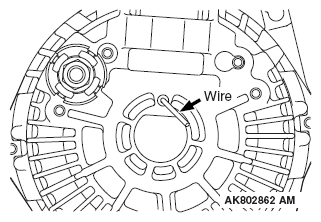

After installing the rotor, remove the wire used to secure the brush.

G13088705
