Special Tools

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Tool	Number	Name	Use

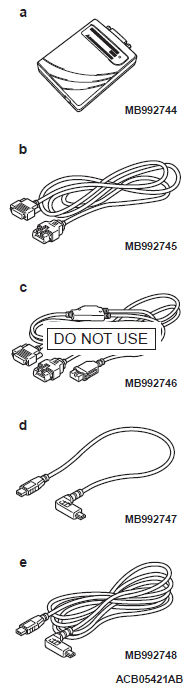

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992744 MB992745 MB992746 MB992747 MB992748 Vehicle communication interface-Lite (V.C.I.-Lite) V.C.I.-Lite main harness A (for vehicles with CAN communication) V.C.I.-Lite main harness B (for vehicles without CAN communication) V.C.I.-Lite USB cable short V.C.I.-Lite USB cable long	-	Maintenance mode <Vehicles with electric parking brake system>

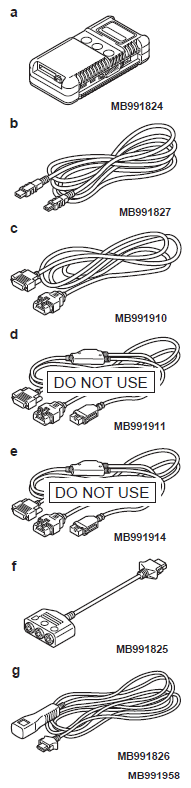

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. Maintenance mode <Vehicles with electric parking brake system>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992146	Booster test adapter	Inspection using a simplified tester
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB990964 MB990520	Brake tool set Piston expander	Disc brake piston pushing back <Front disc brake, rear disc brake (Vehicles with electric parking brake)>
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991621	Piston driver	Disc brake piston pushing back <Rear disc brake (Vehicles without electric parking brake)>
