>>A<< Front Transaxle Assembly Installation

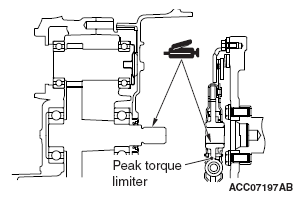

  1. Use a brush to apply the specified grease to the spline of the peak torque limiter.
    NOTE: Wipe off excessive grease.

    Grease

    Brand name: 0101011 or equivalent

  2. Install the front transaxle assembly.
G13121465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
