DTC C1784: FCM Switch Fixed On: Notes

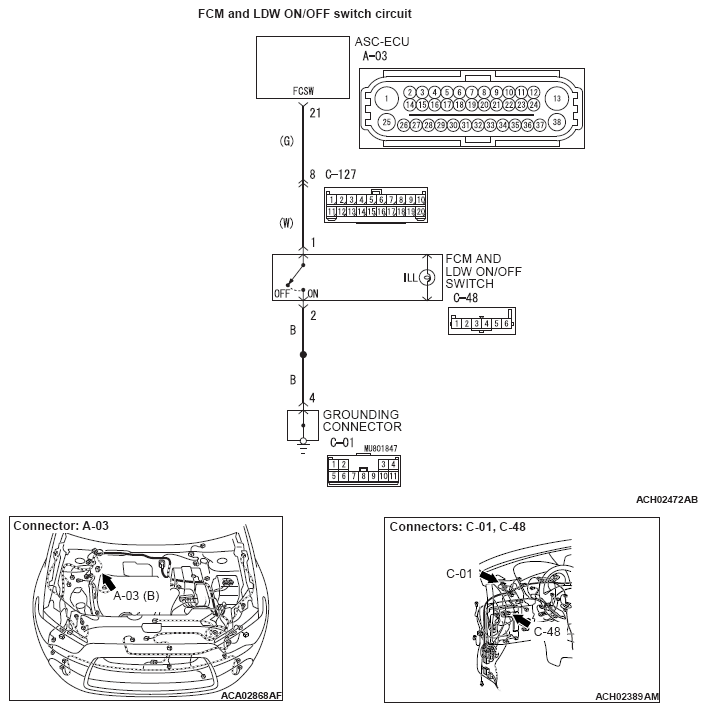

G12675045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
  • Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
