Generator Assembly: Inspection: Stator

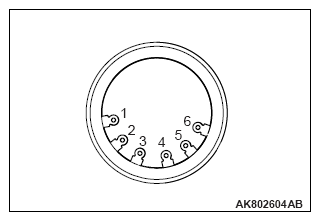

Check the electrical continuity between the stator coil terminals.

Check the electrical continuity of the points shown in the table below. Confirm that there is electrical continuity. If there is not, replace the stator.

Terminal connector of tester	Electrical continuity
1 - 2	Presence of electrical continuity
1 - 3
2 - 3
4 - 5
4 - 6
5 - 6

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

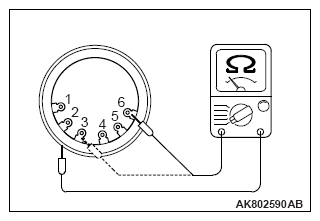

Check the insulation between the stator coil terminal and the core.

Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity. If there is, replace the stator.

Terminal connector of tester	Electrical continuity
1 - Core	Absence of electrical continuity
2 - Core
3 - Core
4 - Core
5 - Core
6 - Core

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

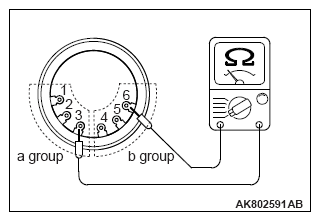

Check the insulation between coil terminals of each
Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity. If there is, replace the stator.

Terminal connector of tester	Electrical continuity
1 - 4	Absence of electrical continuity
1 - 5
1 - 6
2 - 4
2 - 5
2 - 6
3 - 4
3 - 5
3 - 6

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
