Removal And Installation: Notes

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage G4. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal Operation

Engine Room Under Cover Front Removal (Refer to - Under Cover REMOVAL AND INSTALLATION ).

Post-installation Operation

Engine Room Under Cover Front Installation (Refer to - Under Cover REMOVAL AND INSTALLATION ).

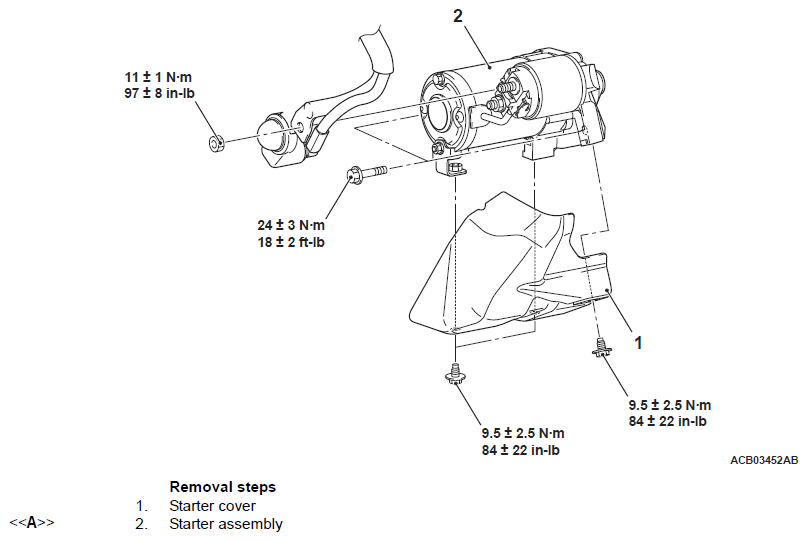

Fig 1: Removing/Installing Starter Motor Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
