Drive Mode Selector Check
WARNING: This page is about a different variant/trim than selected.
| Item |
When the drive mode selector is released (Not being operated) |
When the drive mode selector is pressed |

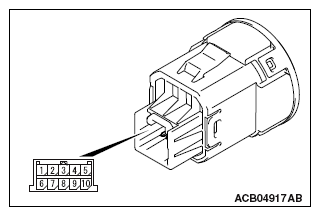

| Continuity between terminal No. 2 and No. 6 |
No continuity |
Continuity exists (2 Ω or less) |
| Continuity between terminal No. 3 and No. 10 |
Continuity exists |
Continuity exists |
