<Fuel Pump Module>: Notes

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service (refer to ON-VEHICLE SERVICE  .)

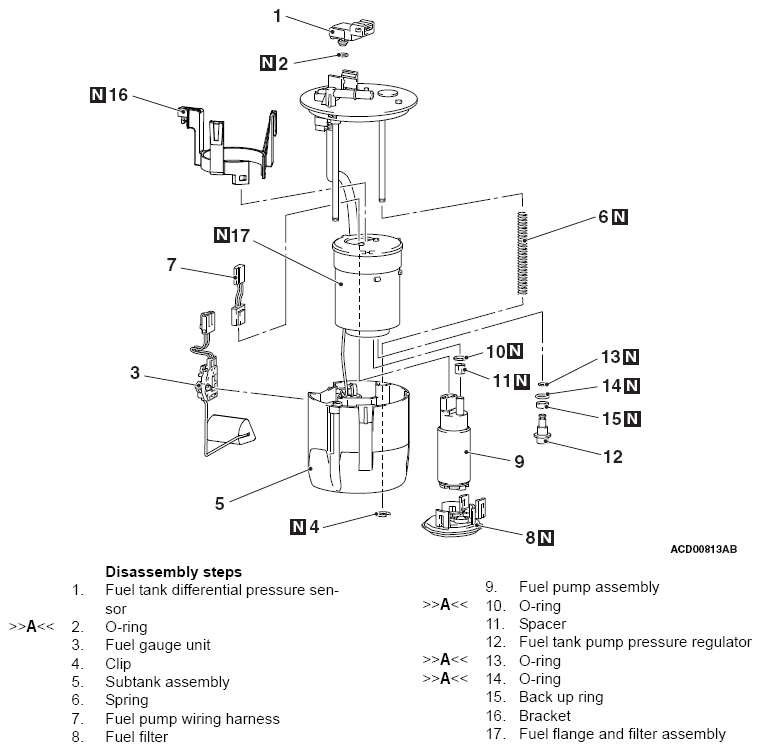

<FWD>

G13323210Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

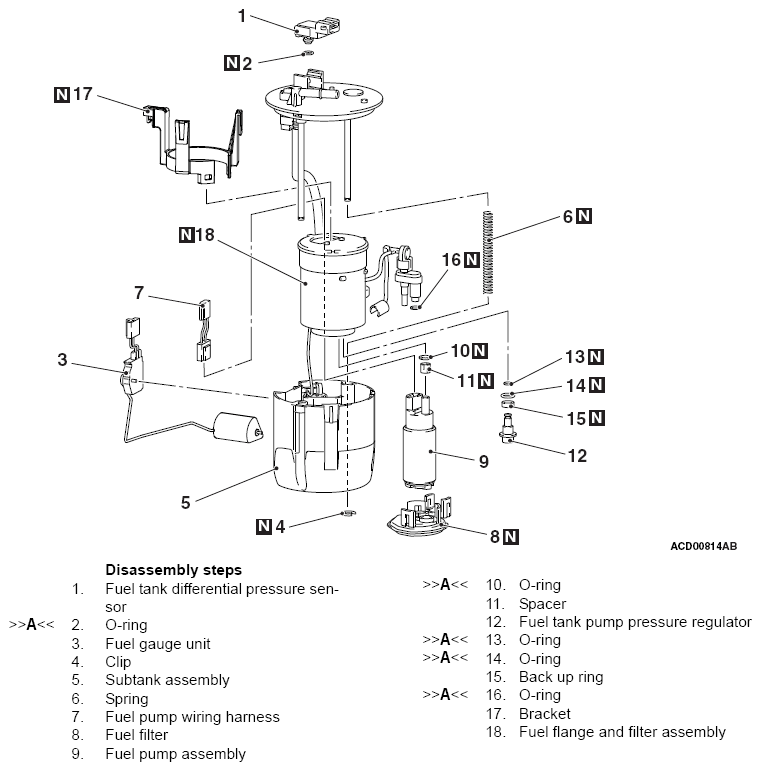

<AWD>

G13323211Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
