- Move the vehicle to flat and isolated spot.
CAUTION:
Disconnect the battery cable connection, and wait for 60 seconds or more before starting the work.
- Disconnect the (-) and (+) terminals of battery cable, and then remove the battery from the vehicle.
- Remove the Steering column lower cover (Refer to INSTRUMENT PANEL ASSEMBLY
).

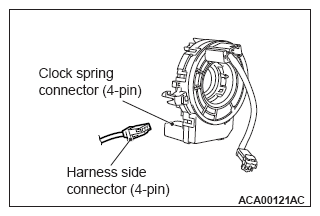

- Remove the connection between the clock spring connector (4-pin) and the harness side connector (4-pin).
NOTE:
Once disconnected from the instrument panel wiring harness, both electrodes of the clock spring connector short automatically. This prevents the driver's air bag from accidental deployment caused by static, etc.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

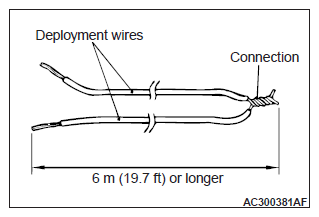

- Obtain two suitable wires, which are 6 m (19.7 feet) or longer, as deployment wires. Then connect the wires at one end to short.
- Touch the vehicle's body with bare hands to discharge static in you.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

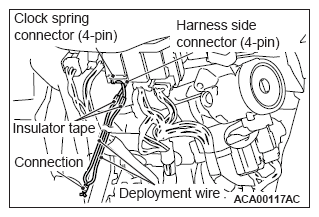

- Cut with a pliers, etc. the instrument panel wiring harness shown in the illustration of the instructions, while the clock spring connector is disconnected.
NOTE:
The disconnection location should be sufficiently away from the harness side connector with consideration to the expansion harness connection location upon disconnections.
- Connect the deployment wires on the two instrument panel wiring harnesses disconnected, cover the connection areas with insulator tape and then pull out the deployment wires outside the vehicle.
- Connect the harness side connector connected with an expansion harness to the clock spring connector.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
WARNING:
If the glass is scratched, the glass may be shattered at deployment. Therefore, cover with a vehicle cover to avoid danger.
- In order to suppress the operation sound as much as possible, fully close all the door windows, close the doors, and then cover the vehicle with a vehicle cover.
CAUTION:
- Make sure that no one is present inside or near the vehicle before deploying the air bag.
- Immediately after the air bag deployment, the inflator is extremely hot. Thus, before handling, leave the inflator for 30 minutes or more to cool.
- If the air bag module does not deploy, consult with your distributor.
- Disconnect the deployment wire connection at a place as far as possible from the vehicle. Then, connect the wires to the removed vehicle battery to deploy the air bag module.
- Discard the deployed air bag module according to the disposal procedures (Refer to DISCARD OF DEPLOYED AIR BAG MODULE
).
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
