Front Wheel Alignment Check And Adjustment: Notes

CAUTION: Perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ).

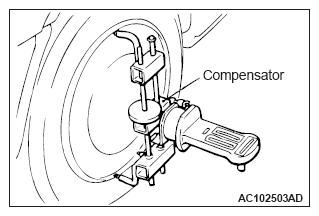

Before the wheel alignment measurement, maintain the front suspension, the steering system and the wheel tires in good condition.
Park the vehicle on a level surface, and position the front wheel in the straight- ahead position to measure the wheel alignment.

TOE-IN

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Standard value: 1 ± 2 mm (0.04 ± 0.08 inch)

Loosen the lock nut with tie-rod bellows clip removed, and then perform the adjustment by turning the tie-rod left/right at the same degree in the opposite direction.
NOTE: The toe moves to the outside by turning the tie-rod: left to the forward direction, and right to the reverse direction.
After adjustment, check that the steering angle is within the standard range using the turning radial gauge (Refer to STEERING ANGLE CHECK ).

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
