Removal And Installation: Notes

Pre-removal and post-installation operation
  • Front Deck Garnish Removal and Installation (Refer to WINDSHIELD WIPER ).
  • Roof Drip Molding Removal and Installation (Refer to MOLDING ).
  • Front Pillar Trim Removal and Installation (Refer to INTERIOR TRIM ).
  • Inside Rear View Mirror Assembly Removal and Installation (Refer to INSIDE REAR VIEW MIRROR ).
  • Lighting Control Sensor Removal and Installation <Vehicles with Lighting Control Sensor> (Refer to LIGHTING CONTROL SENSOR ).
  • FCM/LDW/AHB-ECU Removal and Installation <Vehicles with FCM> (Refer to FCM/LDW/AHB-ECU ).
G12147944Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

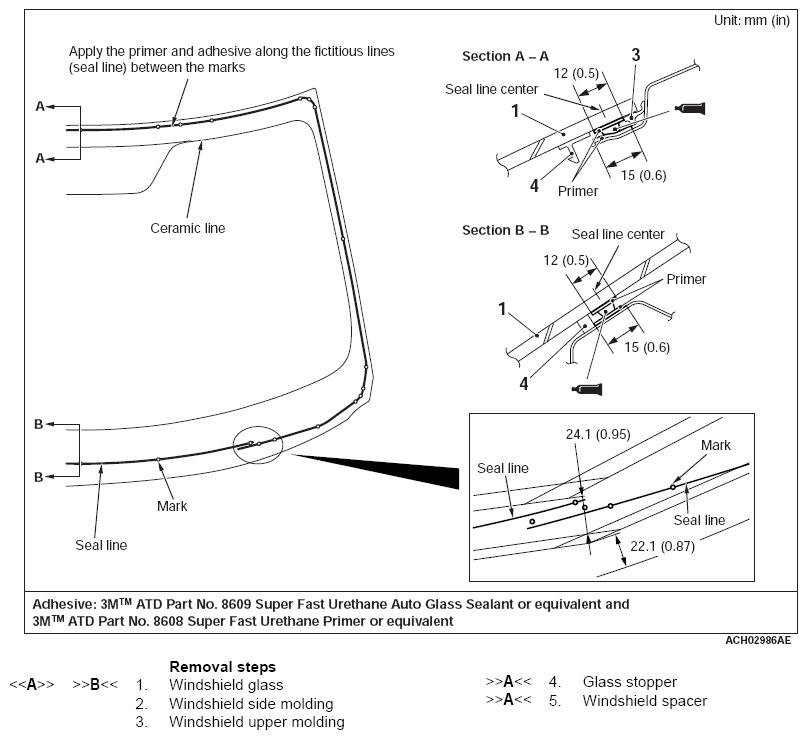

G13324256Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
