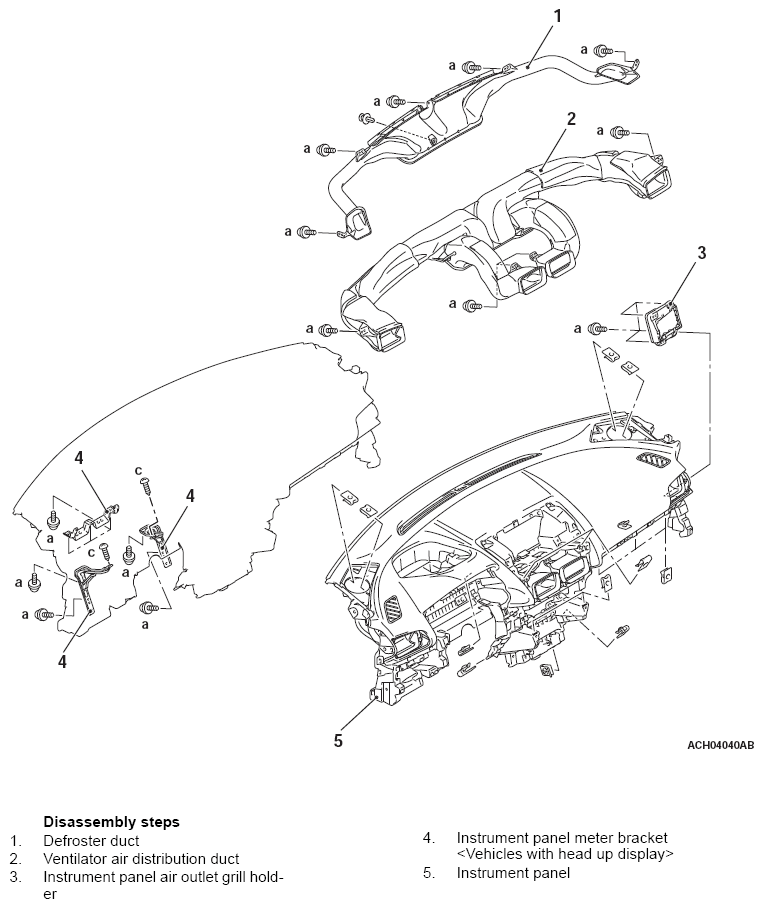

Disassembly And Assembly

CAUTION: Before disassembly and assembly the instrument panel, refer to SRS SERVICE PRECAUTIONS and PASSENGER'S (FRONT) AIR BAG MODULE .

Pre-removal and Post-installation Operation

Passenger's (Front) Air Bag Module Removal and Installation (Refer to PASSENGER'S (FRONT) AIR BAG MODULE ).
Interior Temperature Sensor Removal and Installation (Refer to INTERIOR TEMPERATURE SENSOR ).
