Disassembly Service Point

  1. Transaxle disassembly (Refer to Transaxle).
    CAUTION:
    • Do not remove Transmission range switch.
    • If it is removed it needs to be replaced with a new one.
  2. Bolt 1 and Bolt 2: Turn the 1 bolt and 2 bolt counterclockwise 360° five times. Do not remove these two bolts completely. Other bolts: Remove rest of the bolts on the rim of the side cover.

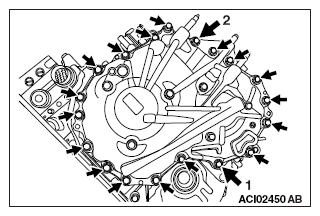

    G13323609Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

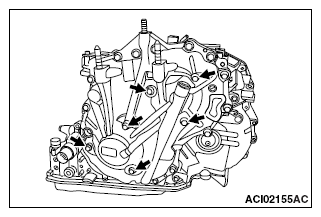

  3. Turn the six pulley bearing retainer bolts (bolts for fixing the pulleys and the side cover) counterclockwise 360° three times. Do not remove these bolts completely.
    G13323610Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Using special tools, separate the side cover from the CVT case with a sliding hammer.
    • Slide hammer (MB990211)
    • Oil seal adapter (MB990212)
  5. Re-install the side cover to the CVT case temporarily, and then temporarily tighten the two bolts remaining on the rim of the side cover.

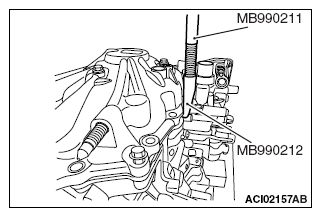

    G13323611Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

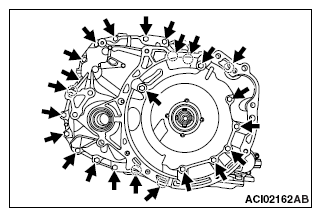

  6. Remove the converter housing from the CVT case. (Bolt: 24 bolts.)
    NOTE: .
    • Apply rust remover to dowel pins as necessary.
    • No bolt removal sequence specified.
    • Retain three bolts for use during the repair.
    G13323612Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

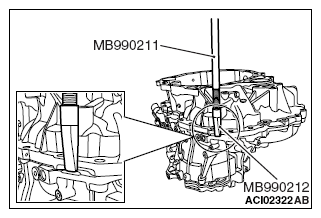

  7. Using special tools, on the rim of the converter housing. Alternatively, use plastic hammer to apply light shock to remove the converter housing from the CVT case.
    • Slide hammer (MB990211)
    • Oil seal adapter (MB990212)
      G13323613Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not pry between the converter housing and CVT case while separating them.
    • Do not use any bars or wedges to separate the converter housing and CVT case.
  8. Lift the converter housing up with level.

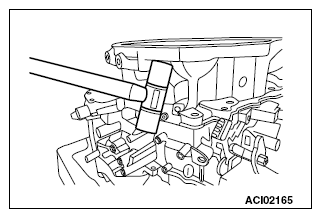

    G13323614Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. Remove the retaining pin.

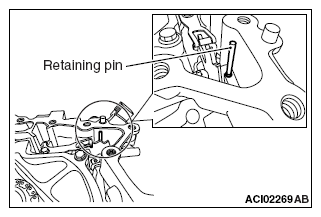

    G13323615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. Remove the O-ring from the input shaft.
    G13323616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. Remove the reduction gear assembly.

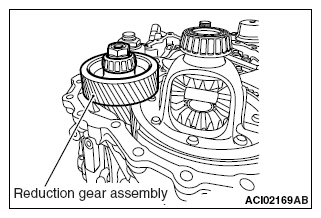

    G13323617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

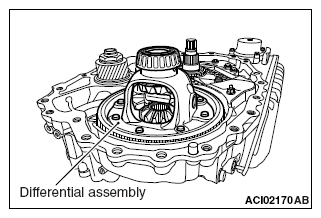

  12. Remove the differential assembly.
    G13323618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  13. Remove the nuts securing the baffle plate A (chain cover), and then remove the baffle plate A.
    G13323619Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  14. Remove the drive sprocket along with the oil pump chain and the driven sprocket at the same time.
    G13323620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    For removing the driven sprocket, spread out the snap ring by snap ring pliers and raise the sprocket.

    NOTE: Keep the sprocket and the chain together as one set after the removing.
    G13323621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  15. Remove the thrust washer from the dummy cover.
    G13323622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

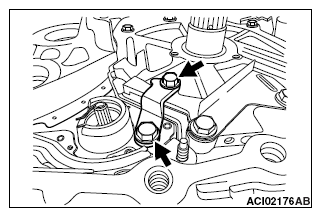

  16. Remove the fix bolt of L-bracket and then remove L-bracket.
    G13323623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

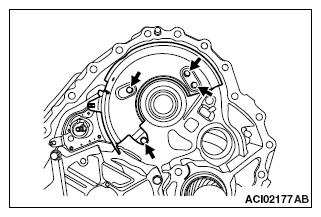

  17. Remove the bolts, and then remove the baffle plate B.
    G13323624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  18. Remove the bolts, and then remove the baffle plate C.

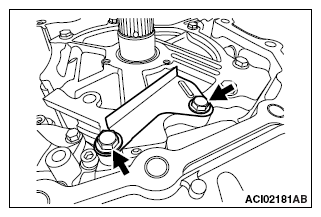

    G13323625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not remove the seal ring from the dummy cover. (Reuse parts).
    G13323626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  19. Remove the five bolts which fix the dummy cover, and then remove the dummy cover with holding the spline portion of the dummy cover.

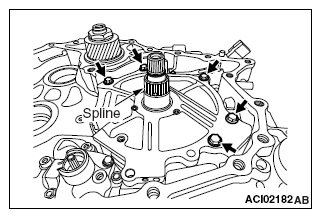

    G13323627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  20. Remove the thrust needle bearing from the forward clutch assembly bore.

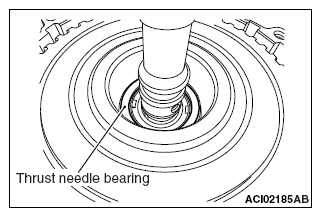

    G13323628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not remove seal ring
  21. Remove the forward clutch assembly from transaxle case.

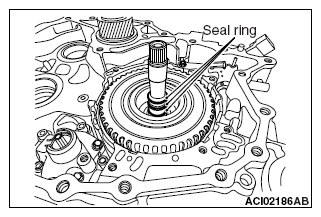

    G13323629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  22. Remove the thrust needle bearing between forward clutch dram and sun gear.

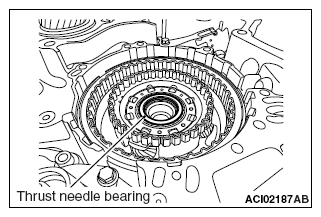

    G13323630Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  23. Remove the sun gear from planet carrier.
    G13323631Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

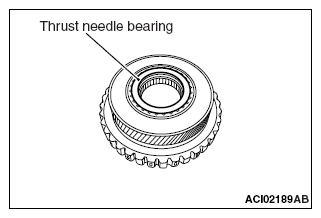

  24. Remove thrust needle bearing from sun gear of primary pulley side.
    G13323632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  25. Remove planet carrier from transaxle case.
    G13323633Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  26. Remove thrust needle bearing from planet carrier.
    G13323634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

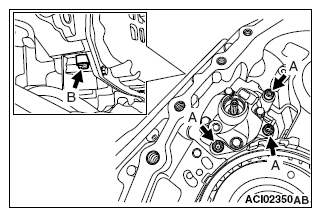

  27. Using 6 mm hexagon wrench, loosen allen head bolts (A) which fix the oil pump.
  28. Remove the bolt (B), and then remove the O-ring from the bolt (B).
  29. Remove the allen head bolts (A) and oil pump.
  30. Remove two tightening bolts which temporary tightened the side cover.
    G13323635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  31. Lift the transaxle case up and remove it.

    Weight of the transaxle case: Approx. 14 kg (31 lbs)

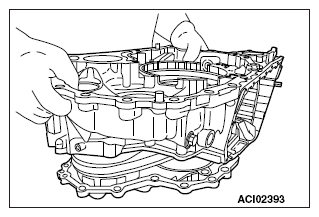

    G13323636Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
