Curtain Air Bag Module Deployment Inside The Vehicle

  1. Move the vehicle to flat and isolated spot.
    CAUTION: Disconnect the battery cable connection, and wait for 60 seconds or more before starting the work.
  2. Disconnect the (-) and (+) terminals of battery cable, and then remove the battery from the vehicle.
  3. Remove the headlining (Refer to HEADLINING ).

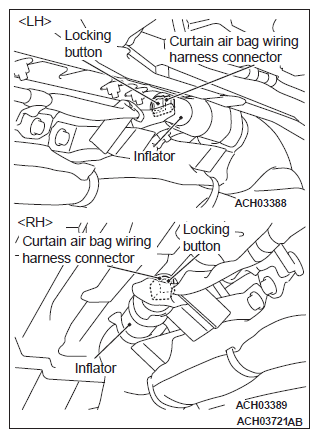

  4. Use the flat-tipped screwdriver to pull out the locking button of curtain air bag harness connector. After releasing the lock, disconnect the connector.
    NOTE: When the curtain air bag module connector is disconnected from the inflator, the two pins of inflator connector are automatically shorted. This prevents the unintentional deployment of curtain air bags caused by the static or others.
    G12148933Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

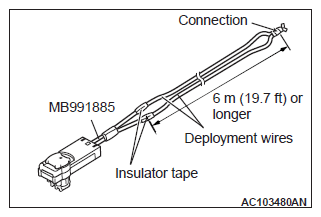

  5. Connect the deployment wires of 6 m (19.7 feet) or more to each of the two wiring harnesses of special tool adapter harness (MB661885), and cover the connection areas with insulation tape. Keep the other ends of deployment wires connected to each other (shorted).
    NOTE: This prevents the unintentional deployment of curtain air bags caused by the static or others.
    G12148957Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. Connect the adapter harness to the inflator, and then pull out the deployment wire to outside the vehicle.
    G12682078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    WARNING: If the glass is scratched, the glass may be shattered at deployment. Therefore, cover with a vehicle cover to avoid danger.
  7. In order to suppress the operation sound as much as possible, fully close all the door windows, close the doors, and then cover the vehicle with a vehicle cover.
    CAUTION:
    • Make sure that no one is present inside or near the vehicle before deploying the air bag.
    • Immediately after the air bag deployment, the inflator is extremely hot. Thus, before handling, leave the inflator for 30 minutes or more to cool.
    • If the air bag module does not deploy, consult with your distributor.
    G12148954Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. Disconnect the deployment wire connection at a place as far as possible from the vehicle. Then, connect the wires to the removed vehicle battery to deploy the air bag module.
  9. Discard the deployed air bag module according to the disposal procedures (Refer to DISCARD OF DEPLOYED AIR BAG MODULE  ).
