Rectifier Assembly

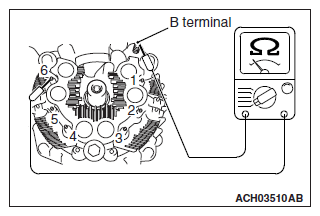

Inspection of the (+) diode
- Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.
If there is, replace the generator assembly.

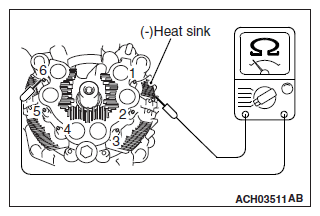

Measured terminal No. Continuity 1 - B terminal Continuity exists. 2 - B terminal 3 - B terminal 4 - B terminal 5 - B terminal 6 - B terminal B terminal - 1 No continuity B terminal - 2 B terminal - 3 B terminal - 4 B terminal - 5 B terminal - 6 Inspection of the ( -) diode
- Check the electrical continuity of the points shown in the table below. Confirm that there is not electrical continuity.
If there is, replace the generator assembly.
| Measured terminal No. | Continuity |
|---|---|
| (-) Heat sink - 1 | Continuity exists. |
| (-) Heat sink - 2 | |
| (-) Heat sink - 3 | |
| (-) Heat sink - 4 | |
| (-) Heat sink - 5 | |
| (-) Heat sink - 6 | |
| 1 - (-) Heat sink | No continuity |
| 2 - (-) Heat sink | |
| 3 - (-) Heat sink | |
| 4 - (-) Heat sink | |
| 5 - (-) Heat sink | |
| 6 - (-) Heat sink |
