Removal And Installation: Notes

CAUTION: When the knock sensor is replaced, initialize the learned value using scan tool (M.U.T.-IIISE) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN DI AND MPI ENGINE ).
Pre-removal and Post-installation Operation

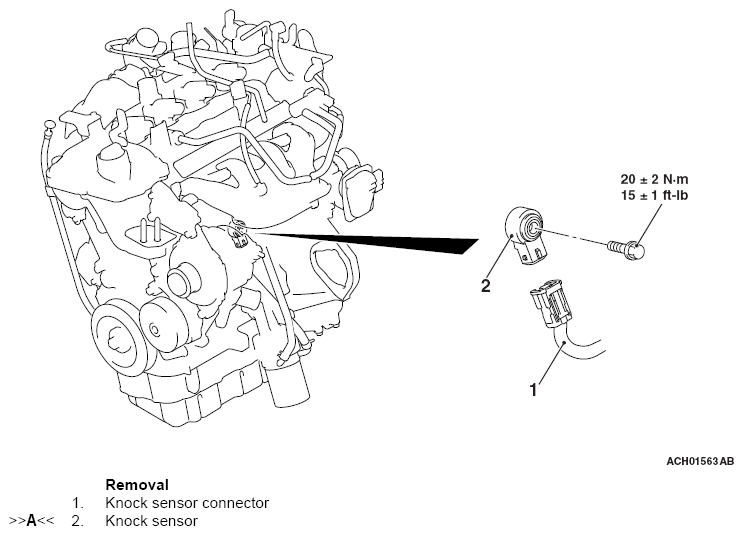

Fig 1: Removing/Installing Knock Sensor Components Location With Torque Specification
G13323311Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
