Disassembly Service Point

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not disassemble parts other than specified in this service information.
  • Be careful not to drop the torque converter during servicing work.
  1. Remove the drain plug from the oil pan.
  2. Remove the drain plug gasket from the drain plug.
  3. Remove the harness bracket from the transaxle assembly.
  4. Remove the oil filler tube and transmission fluid dipstick from the transaxle assembly.
  5. Remove the control cable bracket and breather hose from the transaxle assembly.
    G11278323
  6. Remove the secondary pulley speed sensor from the transaxle assembly.
    G11278324
  7. Remove the O-ring from the secondary pulley speed sensor.
    G11278325
  8. Remove the primary pulley speed sensor from the transaxle assembly.
    G11278326
  9. Remove the O-ring from the primary pulley speed sensor.
    G11278325
  10. Remove the output speed sensor from the transaxle assembly.
    G11278328
  11. Remove the O-ring from the output speed sensor.
    G11278329
  12. Remove the manual control lever from the manual shaft.
    G11278330
  13. Remove the transmission range switch from the transaxle assembly.
    G11278331
  14. Remove the transmission fluid cooler from the transaxle assembly, and detach the O-ring from the transmission fluid cooler.
    G11278332
    CAUTION: When removing the side oil seal, be careful not to cause damage to the transaxle assembly.
  15. Using a flat-tipped screwdriver etc., remove the side oil seal from the transaxle assembly.
    G11278333
    CAUTION: When removing the side oil seal, be careful not to cause damage to the transaxle assembly.
  16. Using a flat-tipped screwdriver etc., remove the side oil seal from the transaxle assembly.
    G11278334
  17. Remove the oil pan mounting bolts from the transaxle assembly.
    G11278335
  18. Remove the oil pan and oil pan gasket from the transaxle assembly.
    G11278336
  19. Remove the magnet from the oil pan.
    G11278337
  20. Remove the fluid strainer mounting bolts to remove the fluid strainer from the valve body assembly.
    G11278302
  21. Remove the O-ring from the fluid strainer.
    G11278339
    CAUTION:
    • To remove the manual plate, use a flat-tipped screwdriver to counterhold the plate so that excessive torque is not applied to it.
    • Do not apply any fixture such as a screwdriver directly to the manual valve to protect it from deformation.
  22. Remove the manual plate mounting nut, and remove the manual plate and the spring washer from the manual shaft.
    G11278295
    CAUTION:
    • To remove the bolts securing the valve body assembly and the oil temperature sensor bracket together, use a flat-tipped screwdriver to counterhold the bracket to avoid it from deformation.
    • Be careful not to drop the manual valve.
    G11278296

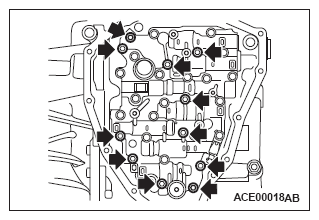

  23. Remove the valve body assembly mounting bolts, and remove the valve body assembly.
    Length beneath the head mm (in) 87 (3.4)
    Quantity 11
    CAUTION: To remove the torque converter, be careful not to scratch the bushing inside the sleeve.
  24. Remove the torque converter.
    G13254944
  25. Remove the O-ring from the input shaft.
    G11278343
    CAUTION: To remove the converter housing oil seal, be careful not to scratch the converter housing and the input shaft.
  26. Use a flat-tipped screwdriver to remove the converter housing oil seal from the transaxle assembly.
    G11278344
  27. Remove the fluid filter cover mounting bolt.
    G11278345
  28. Rotate the fluid filter cover counterclockwise to remove it from the transaxle assembly.
    G11278346
  29. Remove the transmission fluid filter and the O-ring from the transaxle assembly.
    G11278347
  30. Remove the plug from the transaxle assembly.
    G11278348
  31. Remove the O-ring from the plug.
    G10223038
  32. Remove the plug from the transaxle assembly.
    G11278350
  33. Remove the O-ring from the plug.
    G10223038
