REMOVAL AND INSTALLATION <3.0L Engine>: Overview

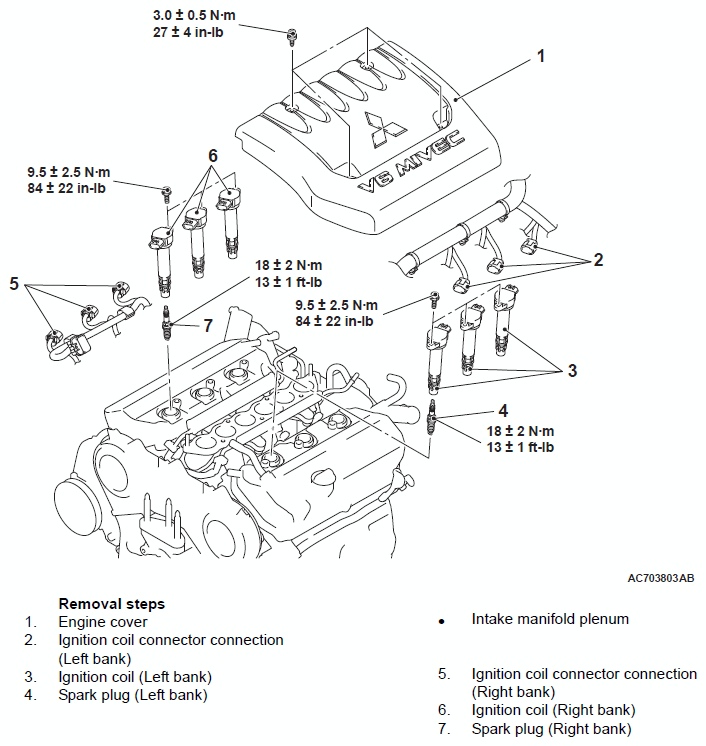

Fig 1: Removing/Installing Ignition Coil Components Location With Torque Specification (3.0L Engine)
G12365766Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


Pre-removal operation
  • Engine Room Side Cover (RH) Removal (Refer to UNDER COVER ).
 Post-installation operation
  • Engine Room Side Cover (RH) Installation (Refer to UNDER COVER ).

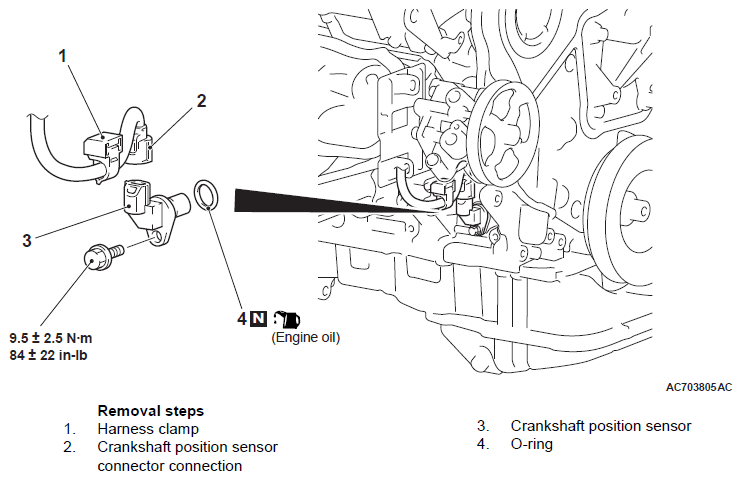

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification (3.0L Engine)
G12365773Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
