Removal And Installation: Overview

Refer to FLOOR CONSOLE ASSEMBLY  .

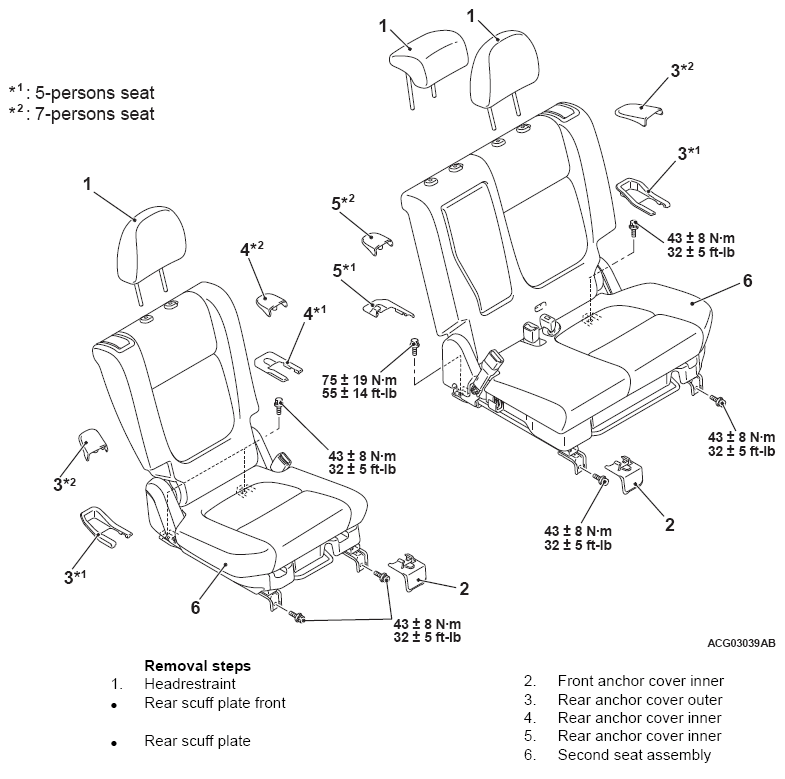

Fig 1: Removing/Installing Second Seat Assembly Components Location With Torque Specification
G13498585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
